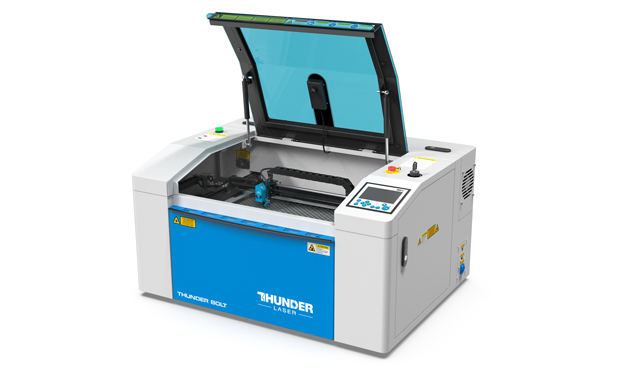

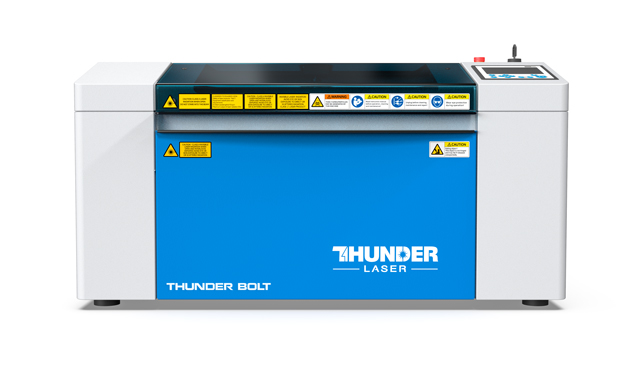

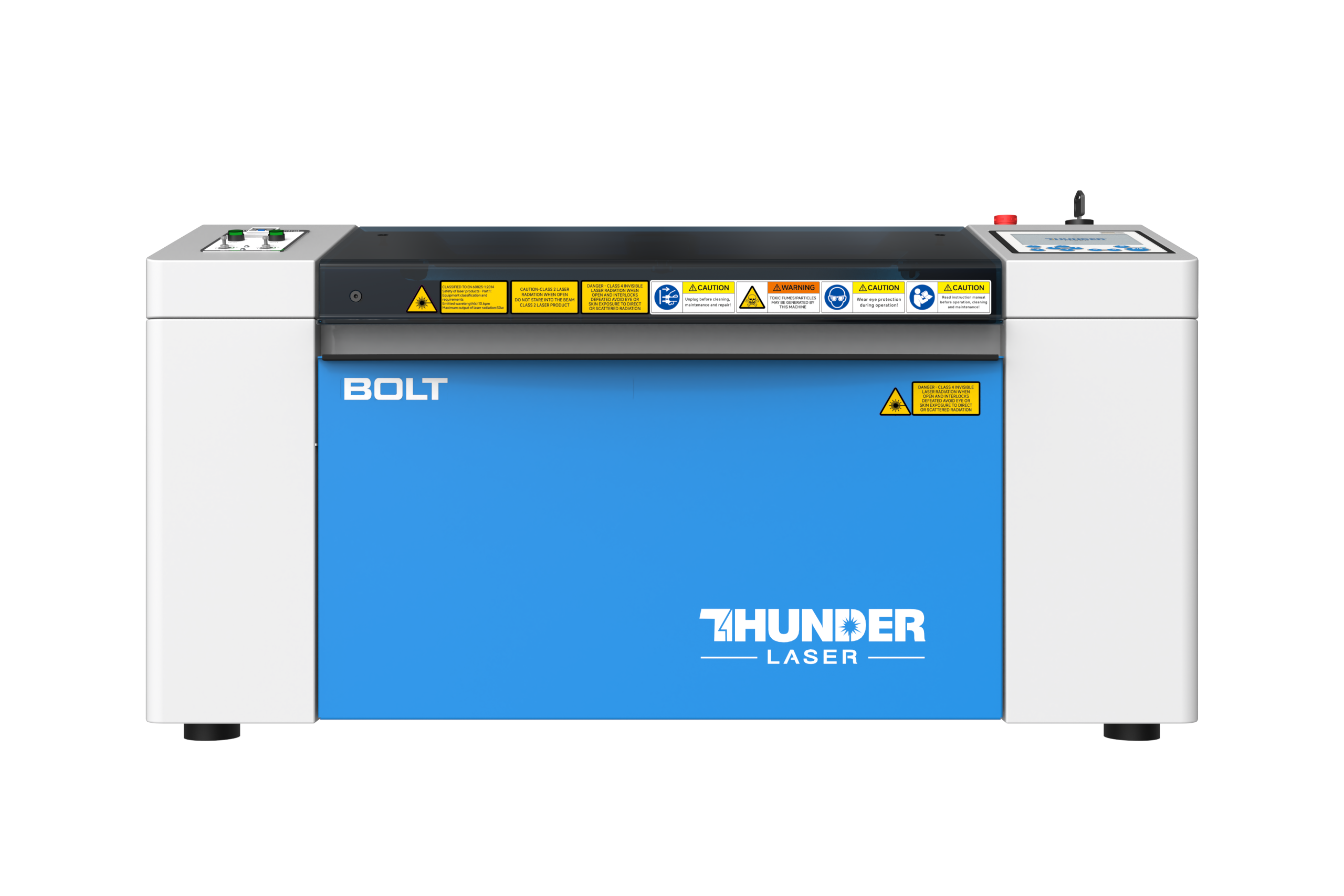

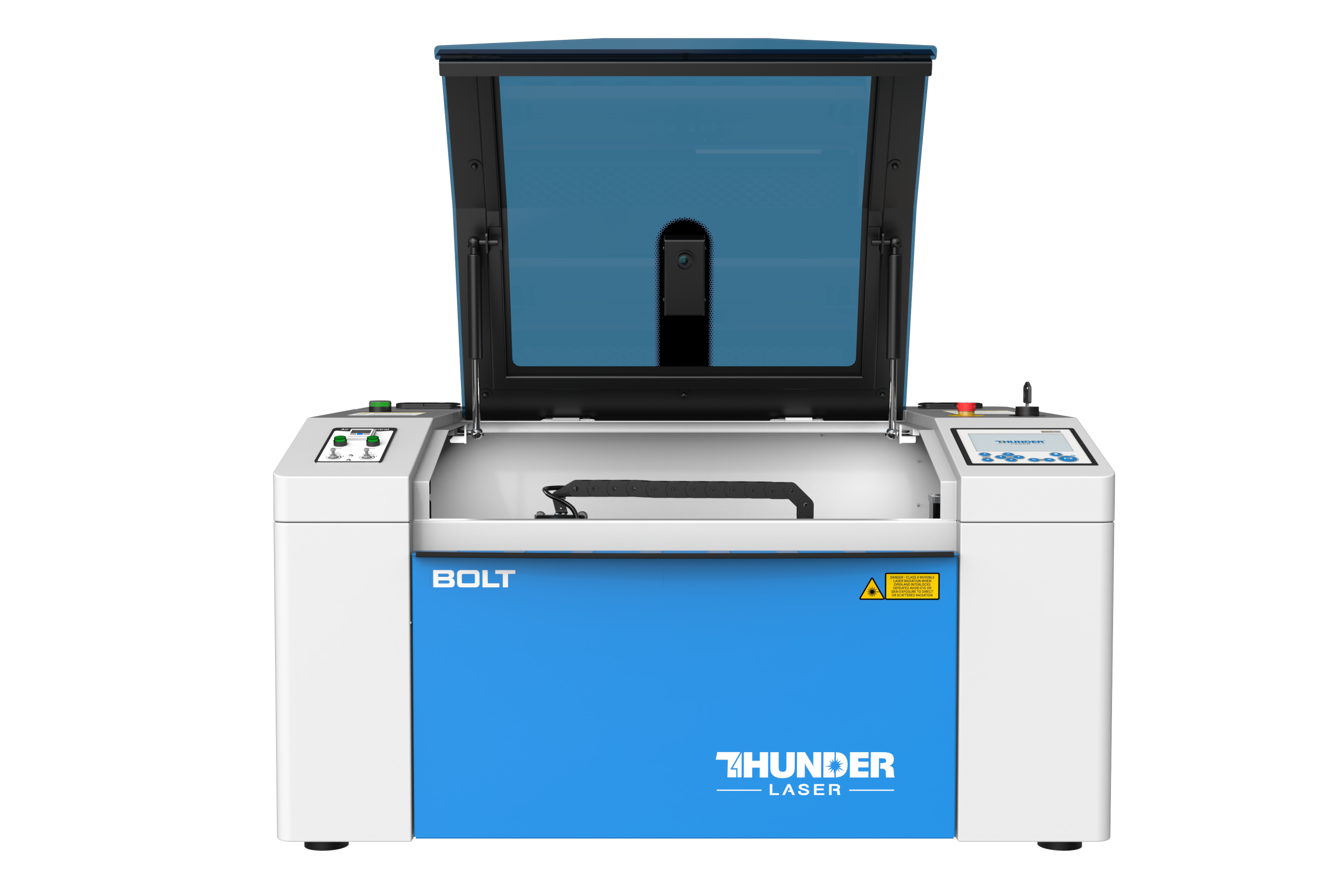

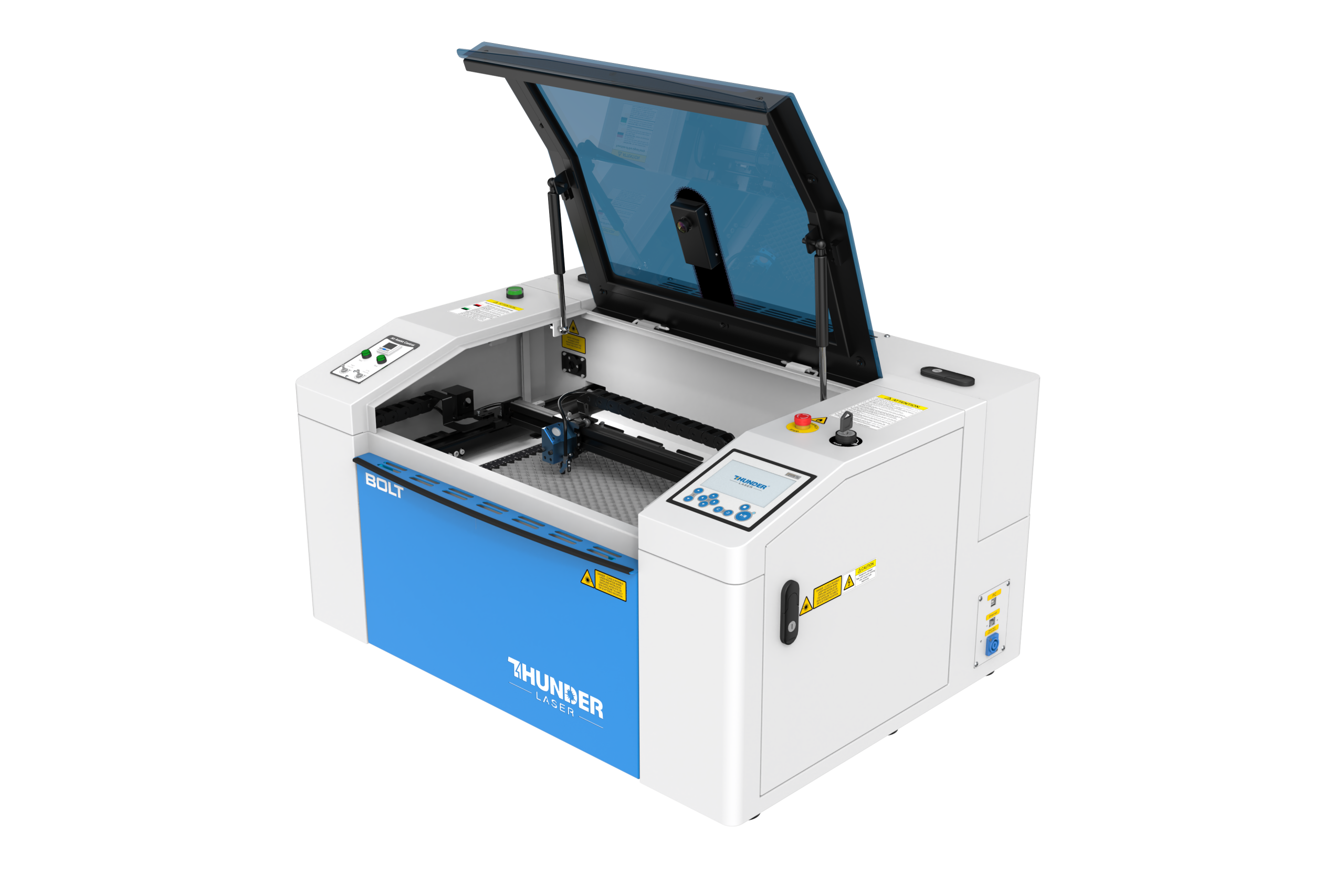

Thunder Bolt is Thunder Laser’s compact, entry-level laser engraver and cutter, built for makers, studios, and first-time users. Despite its small footprint, it delivers professional results with speeds up to 1,500 mm/s, 0.01 mm accuracy, and power options up to 60W.
Equipped with an RF metal tube and integrated air cooling, the Bolt ensures stable performance and saves workspace without the need for an external chiller. User-friendly features like auto-focus, a high-resolution camera, and Dual Air Assists™ make it easy to get started and keep projects precise, safe, and consistent.
Thunder Bolt Plus 24 is a newly launched 24-inch laser engraver and cutter. It’s an upgraded version of the Bolt, designed for makers, studios, and first-time users who need a larger work area. It delivers professional results with 5G acceleration, speeds up to 2,000 mm/s, 0.01 mm accuracy, and power options up to 60W.
Equipped with an RF metal tube and integrated air cooling, the Bolt Plus 24 ensures stable performance while saving workspace by eliminating the need for an external chiller. User-friendly features such as auto-focus, a high-resolution camera, and Dual Air Assists™ make it easy to get started and keep projects precise, safe, and consistent.
Bolt Pro 22 delivers premium engraving quality on a larger working area—built for speed, precision, and industrial productivity.
Featuring a spacious 22″ work bed, 1GB onboard memory, and a high-resolution camera system, the Bolt Pro 22 enables ultra-fine detailing and accurate positioning for complex jobs. With full rotary compatibility, it handles curved and cylindrical objects with ease.
Powered by 5G acceleration and an engraving speed of up to 80 IPS (2000 mm/s), Bolt Pro 22 provides a fast, stable, and production-ready laser engraving solution for industrial applications.
Bolt Pro 32 is our premium CO₂ RF laser system, delivering exceptional engraving and cutting quality for demanding industrial applications.
Equipped with 1GB onboard memory and a high-resolution camera system, Bolt Pro 32 enables ultra-fine detailing and precise positioning for complex engraving and cutting jobs. With full rotary compatibility, it handles curved and cylindrical objects with consistent accuracy.
Powered by 5G acceleration and an engraving speed of up to 80 IPS (2000 mm/s), Bolt Pro 32 provides a fast, stable, and production-ready laser solution for professional and industrial environments.

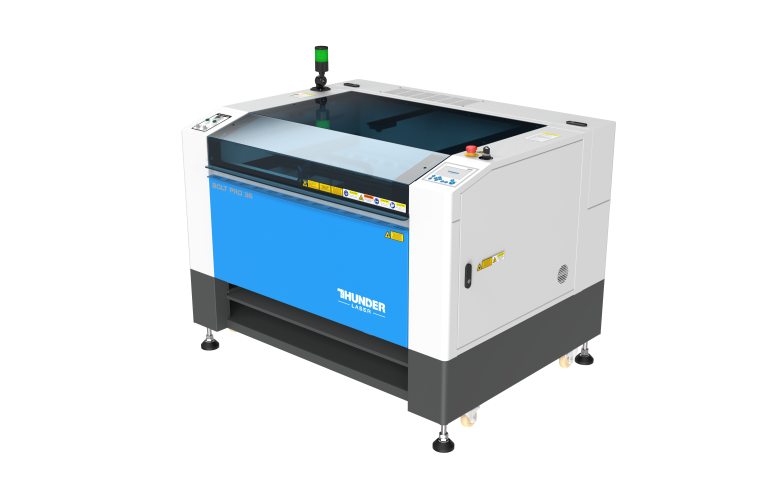

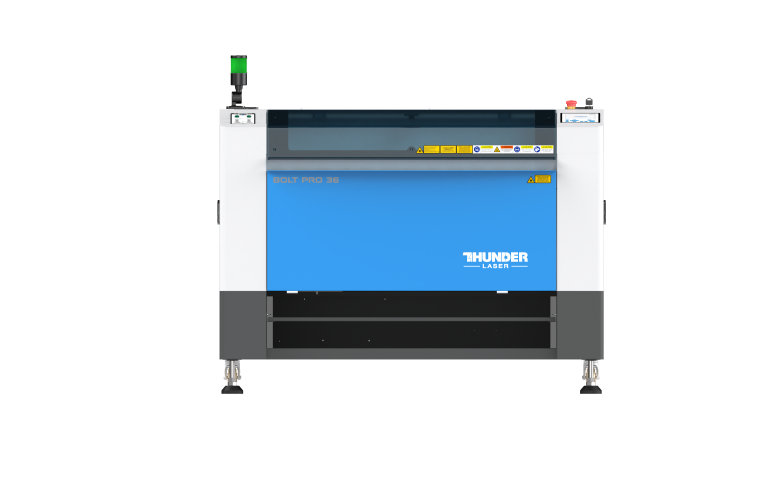

The Bolt Pro 36 introduces a larger 36″ work area and a higher power option of up to 80W. It delivers professional results with 5G acceleration, speeds up to 2,000 mm/s, and 0.01 mm accuracy, making it ideal for workshops and production environments that demand both speed and precision.
Equipped with an RF metal tube and integrated air cooling, the Bolt Pro 36 ensures stable performance even under long, high-intensity workloads. User-friendly features such as auto-focus, a high-resolution camera, and Dual Air Assists™ make it easy to get started and keep projects precise, safe, and consistent.

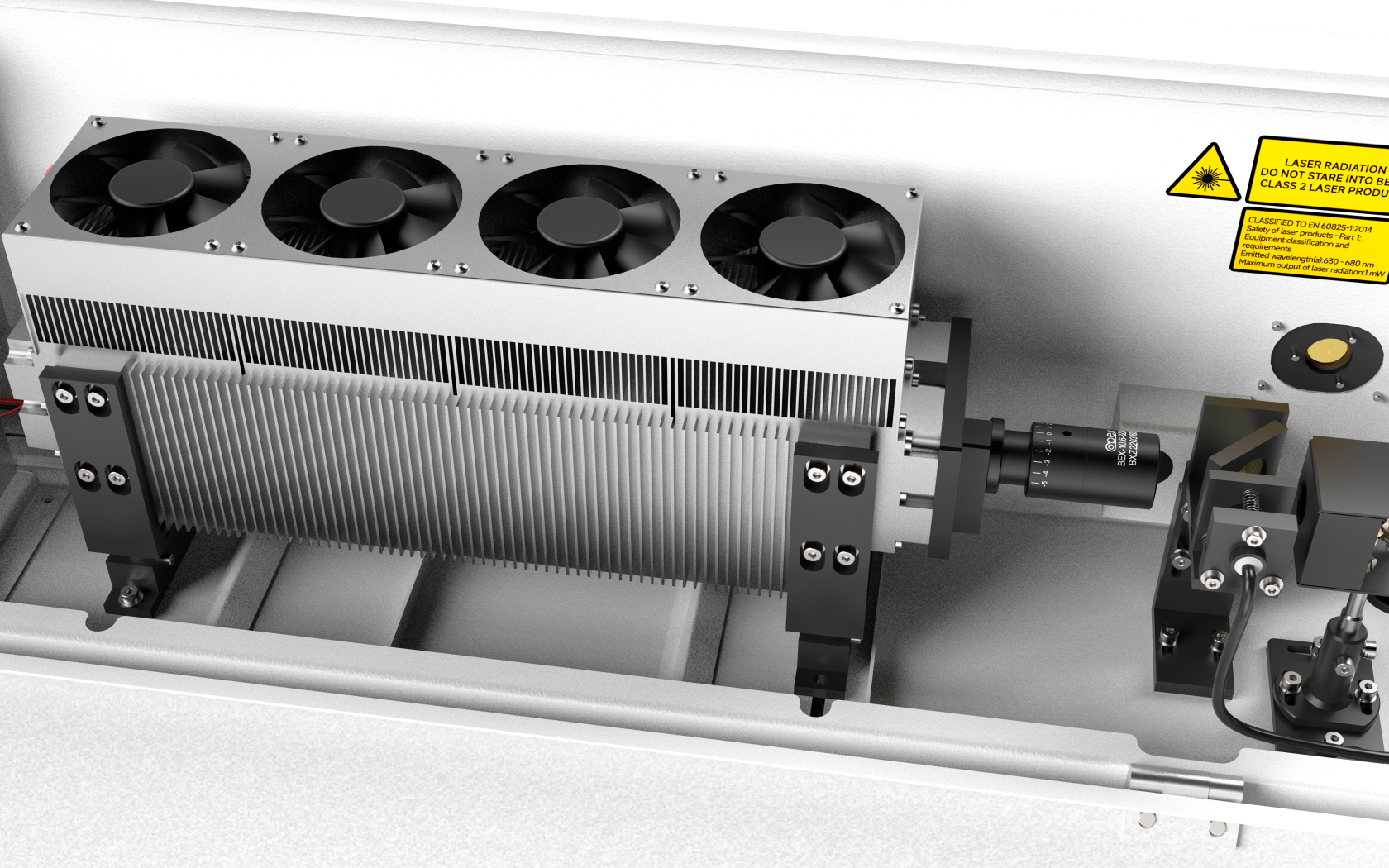

Excellent quality beam output and stable laser power. Lifespan up to 10,000 hours.

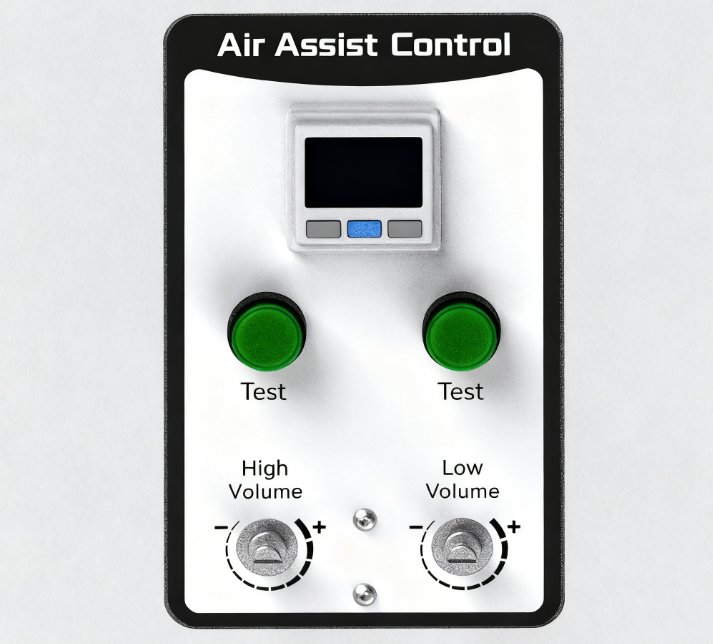

Equipped with Dual Air Assist™ and an Air Volume Sensor, the Bolt Series continuously monitors and adjusts air pressure in real time.

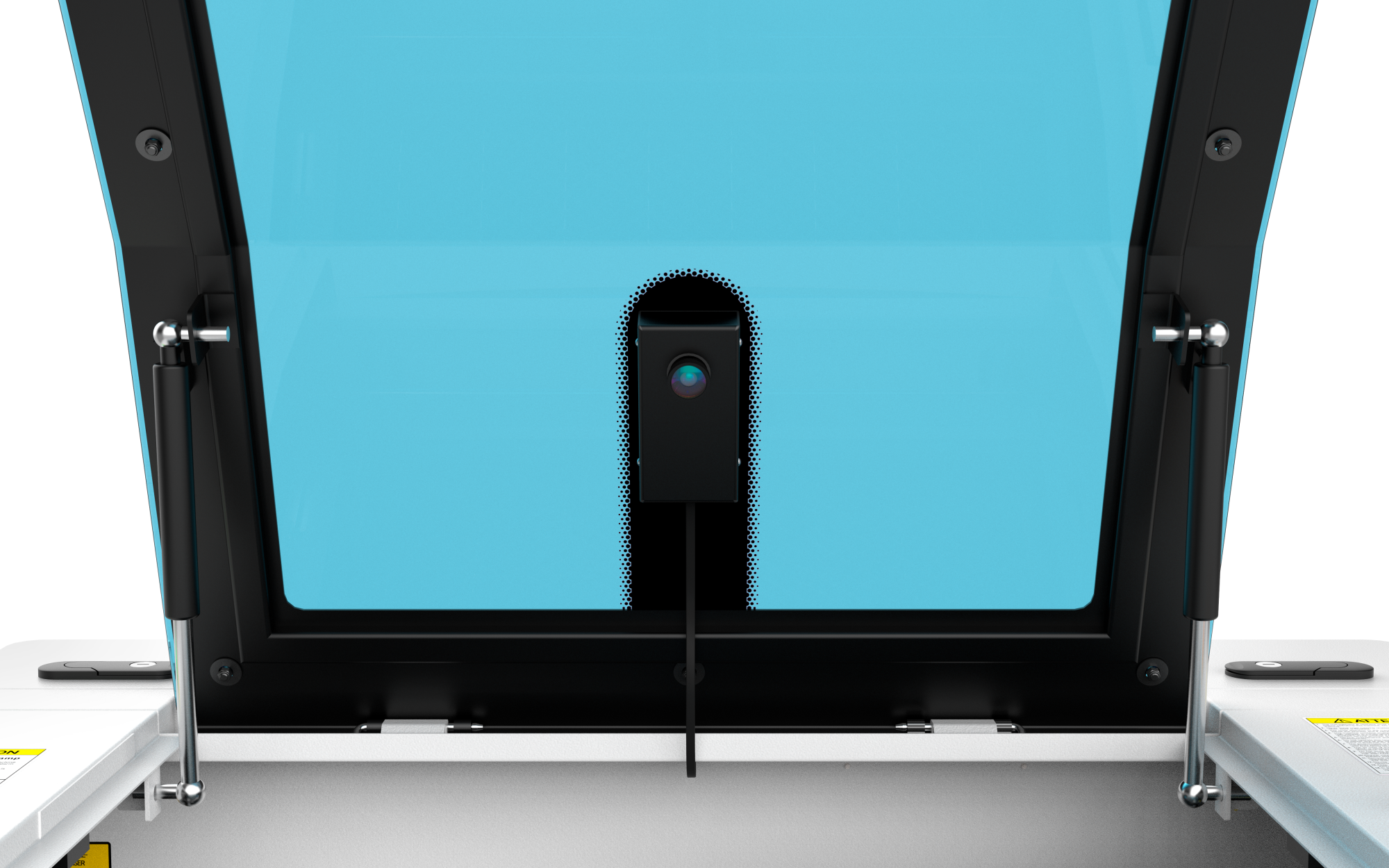

Equipped with a standard 5MP camera, the Bolt Series makes positioning and previewing your designs quick and intuitive.
A rigid frame, high-speed motor, and RF CERAMICORE® tube deliver unmatched repeatability and crisp detail.

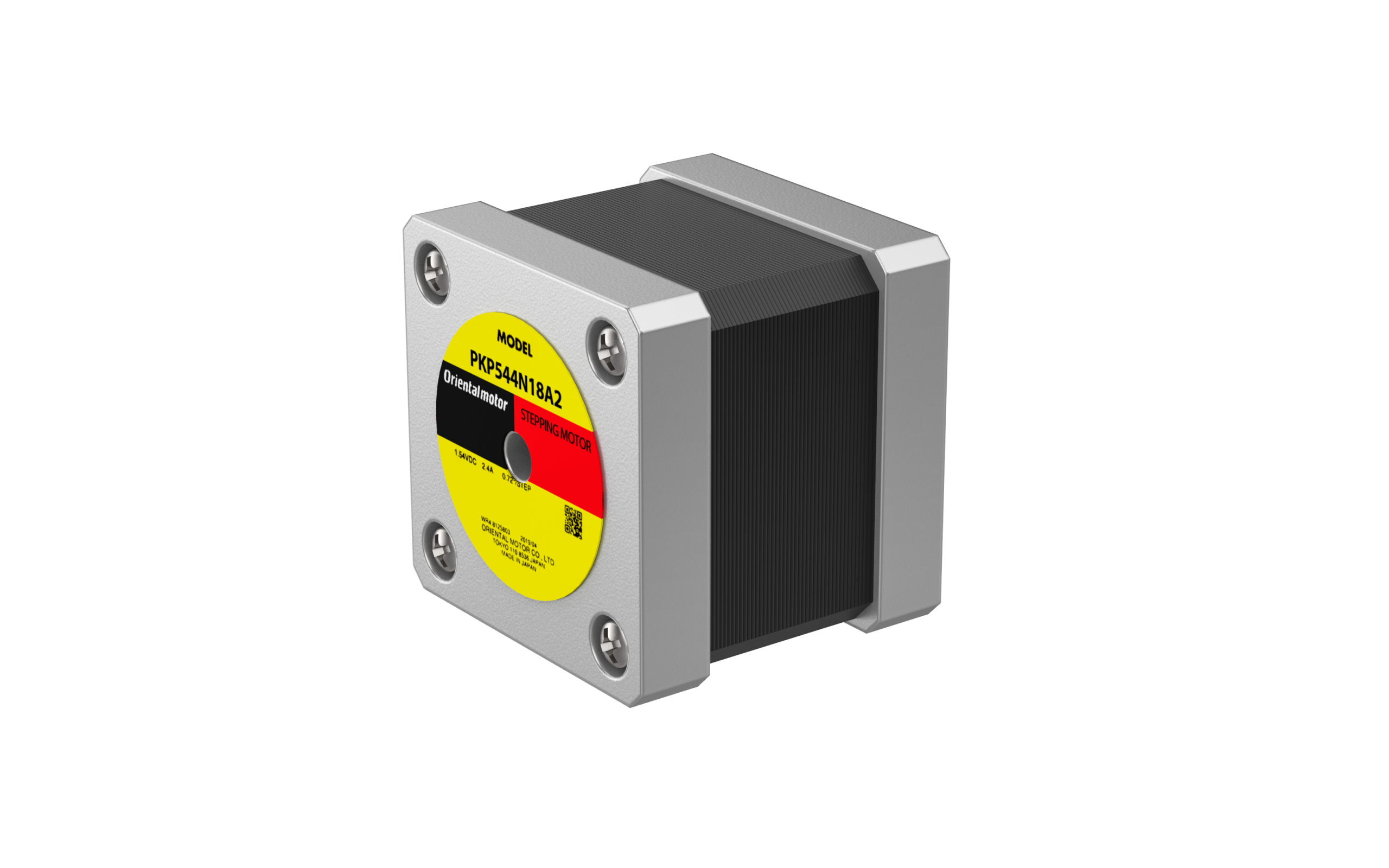

Low vibration and low noise stepper running up to 2000mm/s. Achieve a 3x increase in engraving speed
The Bolt Series features a magnetic rotary attachment tray that can be installed or removed in under a minute. It supports materials of various sizes, with height adjustment handled simply via the Z-axis. Setup becomes intuitive, fast, and highly efficient.

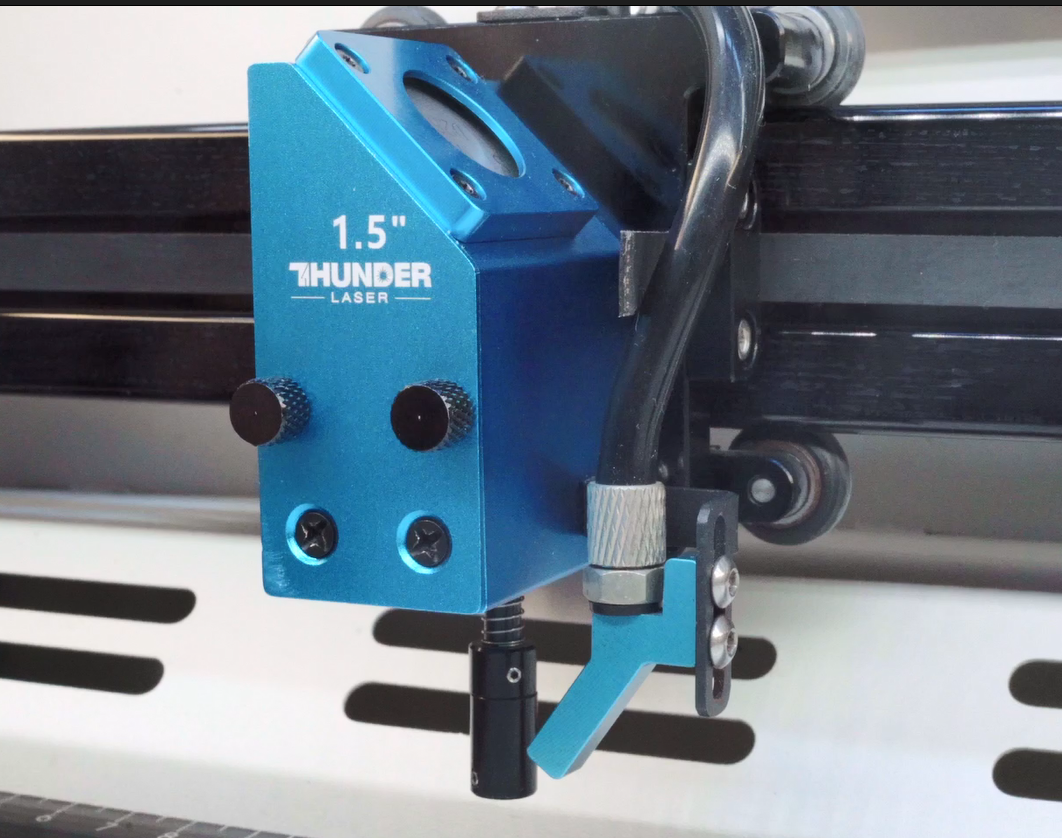

Effortlessly achieve precise focus anywhere within the laser head’s reach.

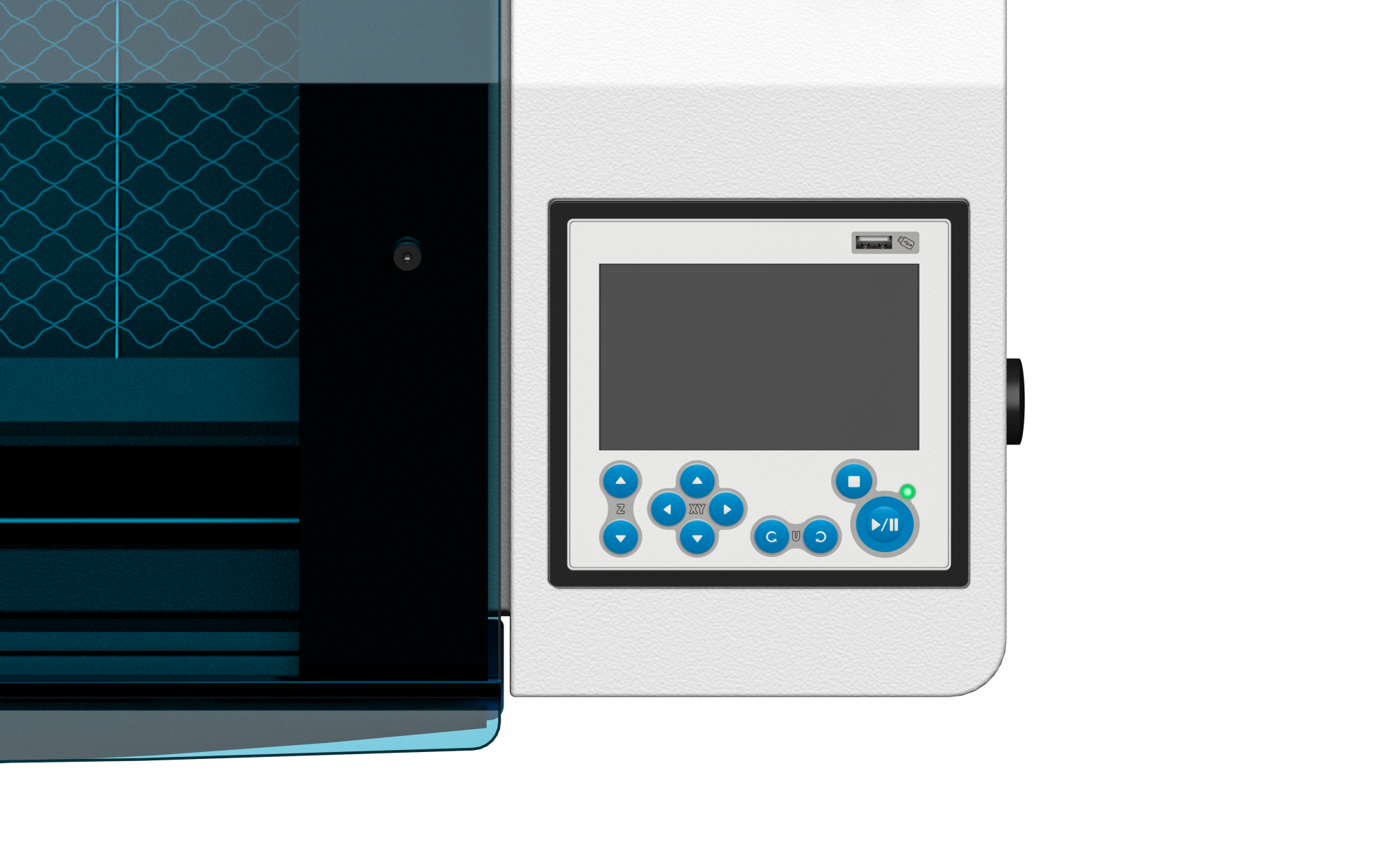

Allowing you to store up to 100 project files, you can also work independently away from the computer.

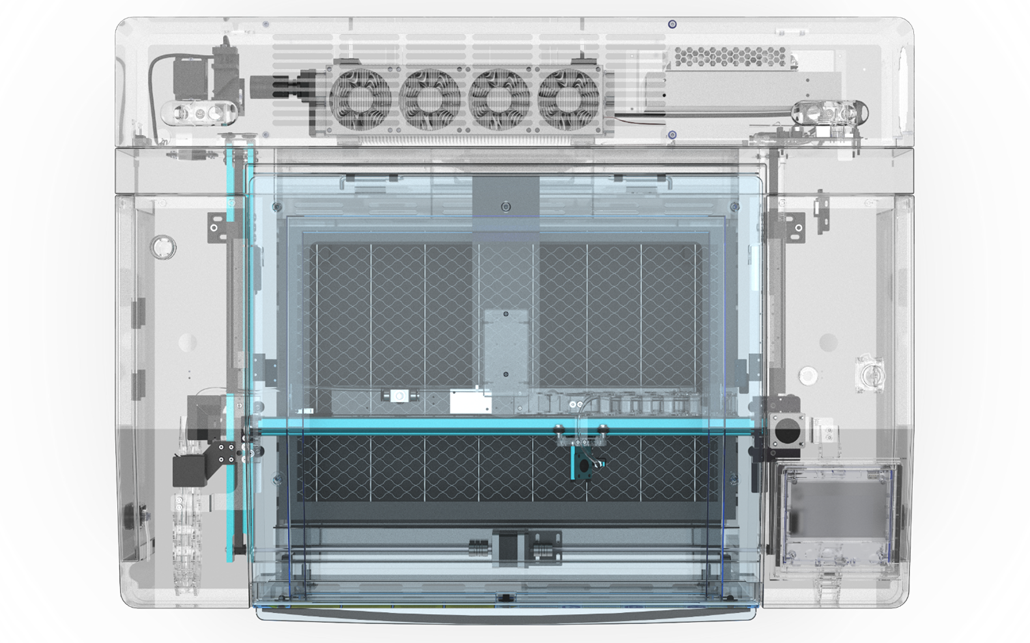

With a robust all-metal frame, the Bolt Series ensures long-lasting durability and stable performance
| Specifications | Bolt | Bolt Plus 24 | Bolt Pro 22 | Bolt Pro 32 | Bolt Pro 36 |
|---|---|---|---|---|---|
| Laser Source | 30W SPT RF Tube | 60W SPT RF Tube | 30W SPT Coherent RF Tube | 55W SPT Coherent RF Tube | 80W SPT RF Tube |
| Machine Size | 941 x 724 x 498 mm (37.0″ x 28.5″x 19.6″) | 1125 x 925 x 585 mm (44.3″ x 36.4″ x 23.0″) | 1050 x 852 x 1020 mm (41.3″ x 33.5″ x 40.1″) | 1304 x 980 x 1020 mm (51.3″ x 38.5″ x 40.1″) | 1430 x 1125 x 1225 mm (56.3″ x 44.3″ x 48.2″) |
| Working Area | 508 × 305 mm (20″ × 12″) | 610 × 407 mm (24″ × 16″) | 559 × 381 mm (22″ × 15″) | 813 × 508 mm (32″ × 20″) | 915 × 610 mm (36.0″ × 24.0″) |
| Maximum Lifting | 113mm / 4.45″ | 150 mm / 5.91″ | 185 mm / 7.28″ | 185 mm / 7.28″ | 205 mm / 8.07″ |
| Z Axis Height | 110mm / 4.33″ | 160 mm / 6.30″ | 182mm / 7.17″ | 182mm / 7.17″ | 210 mm / 8.26″ |
| Max Part Size | 513 x ∞ x 110 mm (20.2″ x ∞ x 4.3″) | 655 x ∞ x 150 mm (25.7″ x ∞ x 5.9″) | 600 x ∞ x 182 mm (23.6″ x ∞ x 7.1″) | 854 x ∞ x 182 mm (33.6″ x ∞ x 7.1″) | 959 x ∞ x 205 mm (37.7″ x ∞ x 8.0″) |
| Max Load | 10 kg / 22.0 lbs | 20 kg / 44.1 lbs | 20 kg / 44.1 lbs | 20 kg / 44.1 lbs | 20 kg / 44.1 lbs |
| Machine Weight | 77 kg / 169.7 lbs | 132 kg / 291.1 lbs | 187.5 kg / 413.0 lbs | 233 kg / 513.9 lbs | 265.5 kg / 585.3 lbs |
| Repeat Positioning Accuracy | 0.01mm | ||||
| Max. Engraving Speed | 1,500 mm/s | 2000 mm/s | |||
| Acceleration | 3G, 30,000 mm/s² | 5G, 50,000 mm/s² | |||
| Air Assist System | Dual-channel air assist with integrated digital flow meter | ||||
| Cooling System | Air Cooling | ||||
| Pass-through Door | Front Pass-through Door | ||||
| Rotary | Magnetic Rotary Tray (Standard) | Supported | |||
| Rotary Diameter | 0~90 mm | 0~90 mm | / | / | 0~90 mm |
| Camera | 5MP Mounted Camera | ||||
| Memory | 1GB (1024MB) | ||||
| Laser Source Lifetime | 10,000+ | ||||
| Voltage | 230V±5% or 110V±10% | ||||
| Laser Head | Standard: 2.5″ Optional: 1.5″, 2.0″, 4.0″ | ||||
| Nozzle | 3 mm | ||||
| Connections | Ethernet, USB Cable, USB Disk | ||||
| Software | LaserMaker, LightBurn, RDWorks Supported | ||||
| Safety | FDA Class 1, CE | ||||
| Warranty | 2 Years Warranty | ||||
Bolt – 2 years on the machine, 1 year on the laser tube, 30 days on the lenses and mirrors.
Bolt Plus – 2 years on the machine, 2 years on the laser tube, 30 days on the lenses and mirrors
We offer a 2 years warranty on the Boot 22 and 32 machines, 2 years on the laser tube, 30 days on the lenses and mirrors
As long as you know how to design jobs in graphic software, it just takes a few hours for you to become a master of laser machine. You just need to do some tests to know what speed and power is good for different materials. Since we’ve provided some of the parameter library, it will save you more time.You can watch the guiding videos from our website to learn how to use the machine in advance too.
https://www.thunderlaser.com/video/what-laser-cutter-can-create.html
https://www.thunderlaser.com/video/how-to-use-your-laser-machine.html
https://www.thunderlaser.com/video/how-to-use-your-laser-software.html
Install a removable rotary attachment in your laser engraving machine for cylindrical glass, wood, or metal products.
Install a removable rotary attachment in your laser engraving machine for cylindrical glass, wood, or metal products.
Lenses available for all project types. The more detailed the graphics, the shorter the focal length.
The thicker the material, the greater the focal length is required.
Thunder Laser exclusive Lightburn DSP license key
