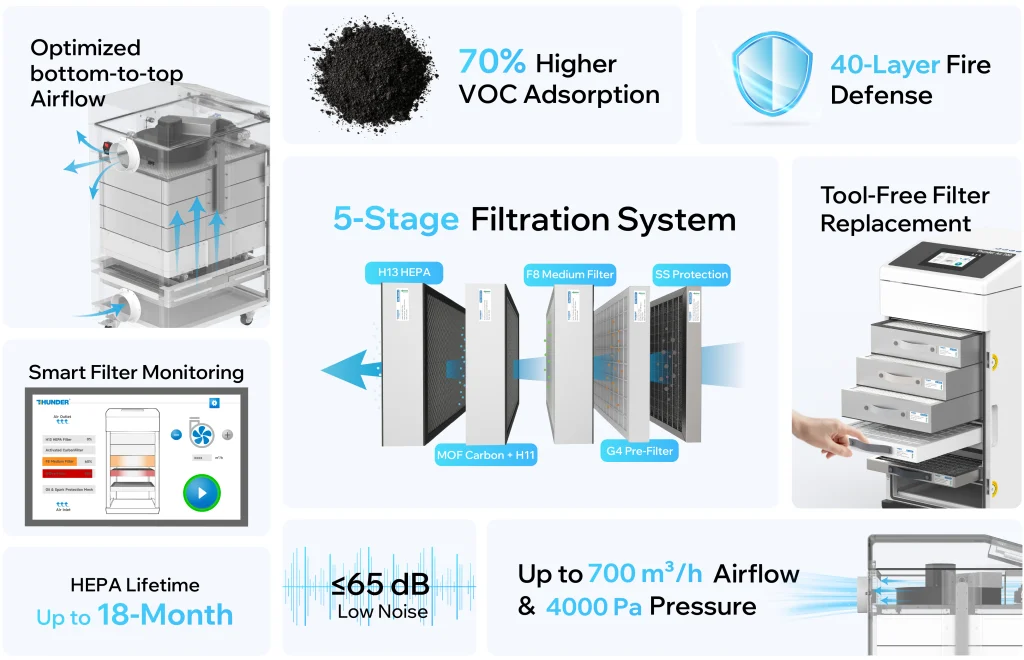

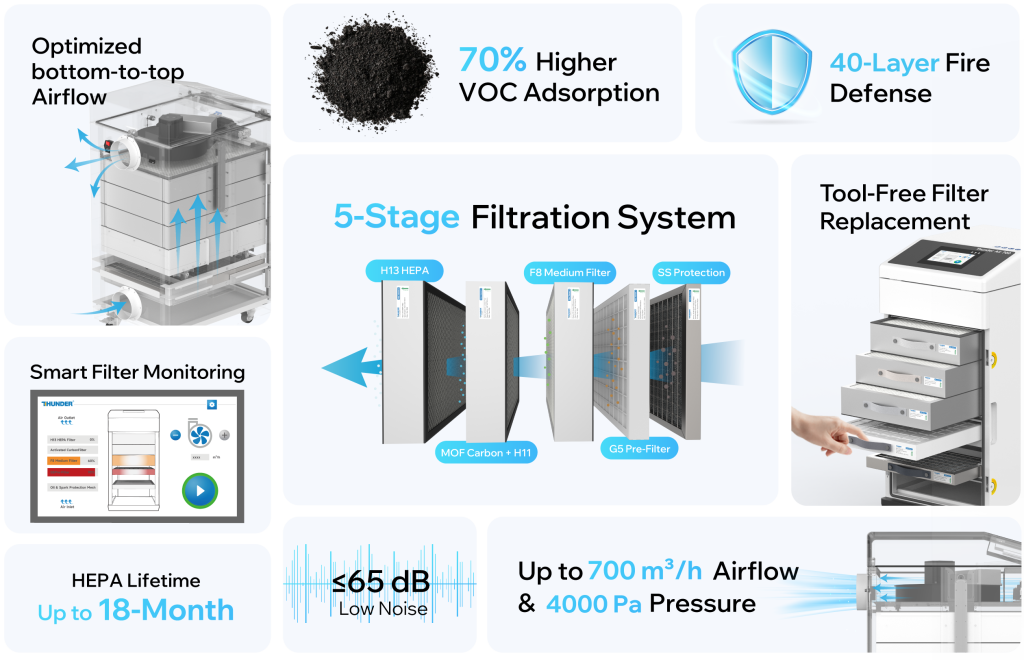

Thunder Air uses a 5-stage filtration system to capture contaminants step by step, from sparks and coarse dust to fine particles, odors, gas-phase pollutants, and VOCs. Each filtration layer works together to support cleaner exhaust air and reliable purification performance in professional workshop environments.

The optimized bottom-to-top airflow path allows heavier particles to settle naturally before reaching the main filters. This helps reduce premature filter clogging, extend filter life, and lower long-term maintenance costs.

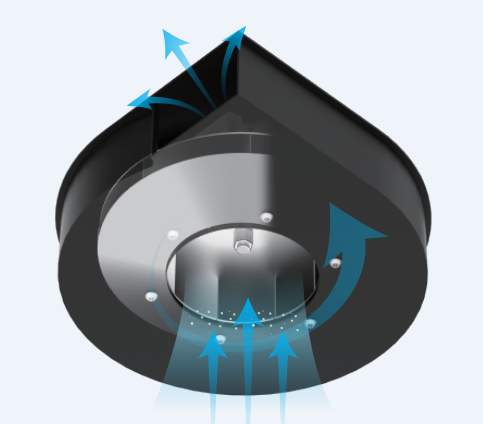

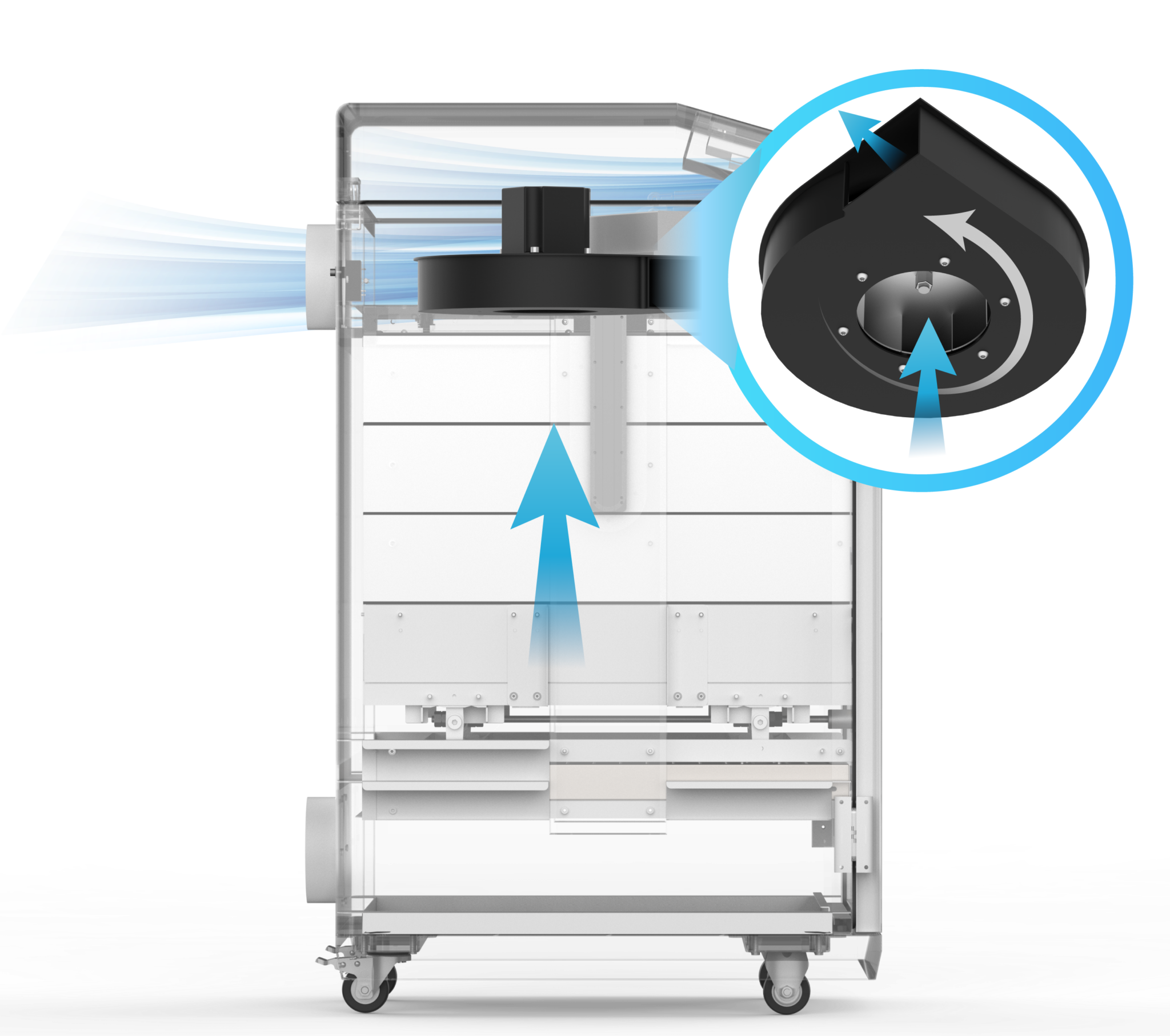

The top-mounted high-speed centrifugal fan delivers strong and stable extraction performance, with up to 700 m³/h airflow and up to 4000 Pa static pressure. It helps draw fumes, smoke, particles, and odors away from the source quickly and consistently.

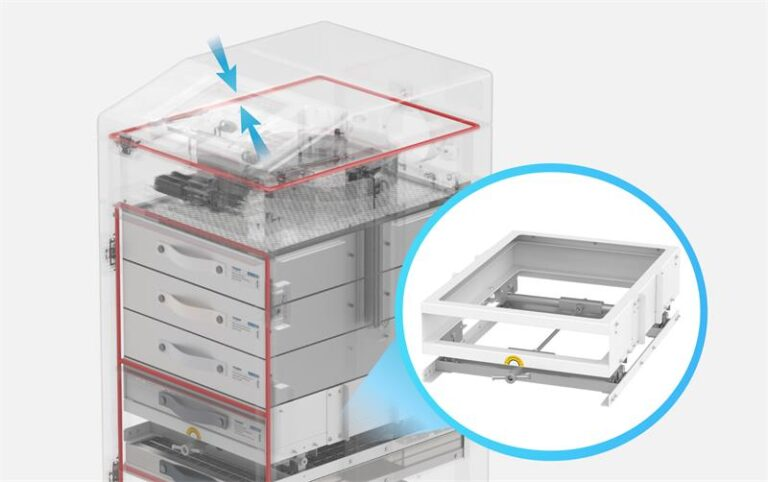

Thunder Air combines spark protection, a sealed enclosure, and vibration-reducing structure to support safer operation in demanding workshop environments. The system helps reduce fire-related risks, limit exhaust leakage, and maintain stable operation during long working sessions.

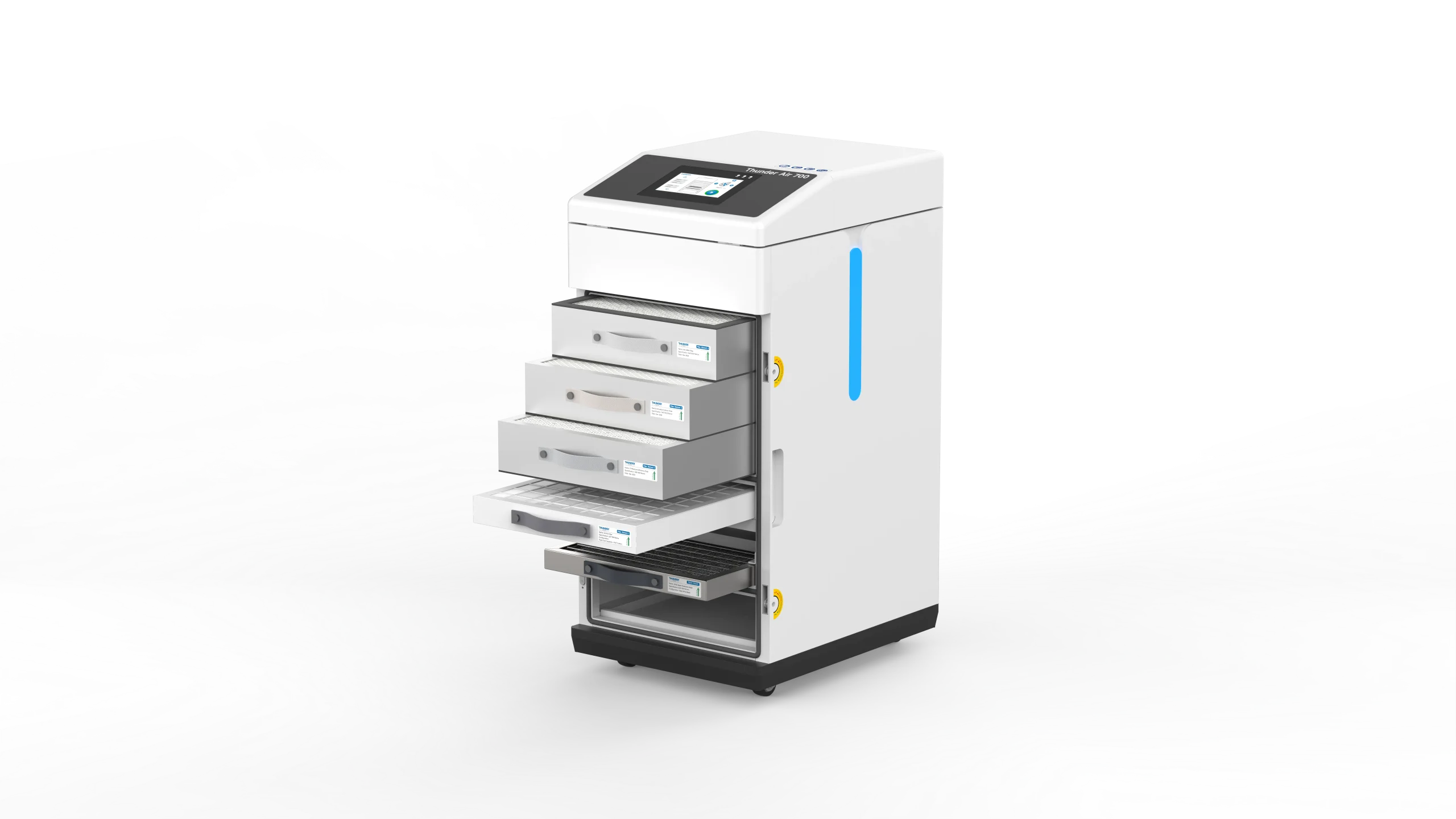

Built-in filter monitoring tracks filter status in real time and alerts users when maintenance is needed. With visual status display and tool-free filter replacement, Thunder Air makes daily maintenance easier and more predictable.

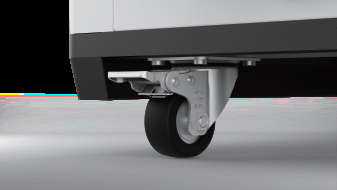

Thunder Air is built for daily use in busy workshops and production spaces. Low-noise operation helps maintain a more comfortable working environment, while tool-free filter replacement, lockable wheels, and a bottom debris collection tray make operation, movement, cleaning, and routine maintenance easier.

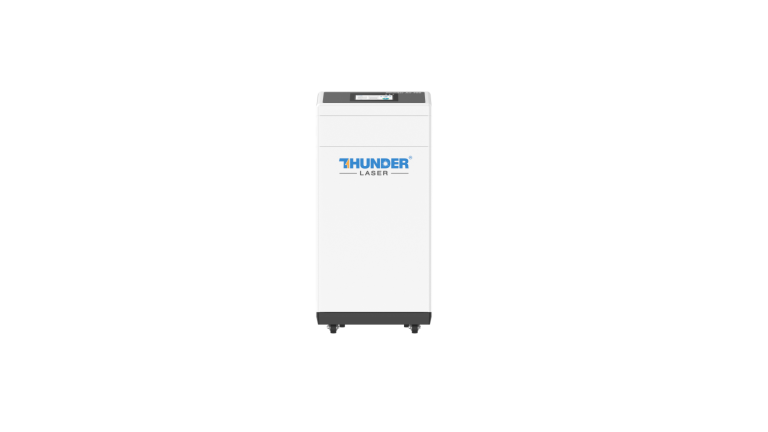

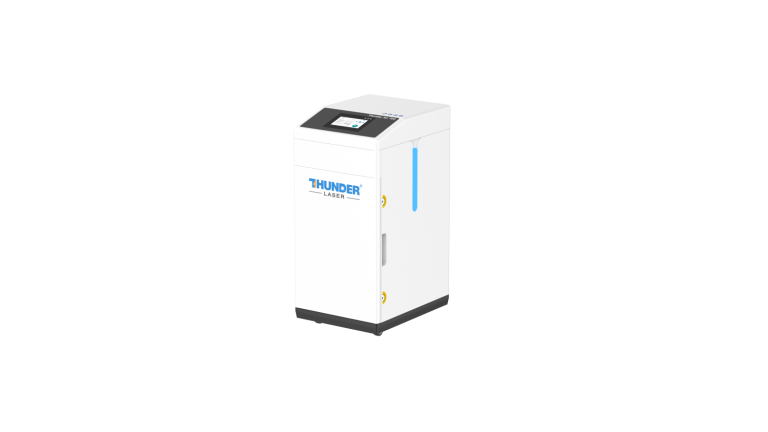

| Specification | Thunder Air 700 |
| Dimensions | 475x605x972 mm / 18.70″ x 23.82″ x 38.27″ |
| Airflow | MAX. 700 m³/h / 412 cfm |
| Air Pressure | MAX. 4000 Pa |
| Compatible Voltage | 220 V /110 V |
| Noise Level | ≤65 dB |
| Weight | 95 kg / 209.44 lb |
| Power | 600 W |
| Airflow Adjustment | 5 Levels |
| Touch Screen | 7″ Touchscreen |
| Air Duct | Ø150 mm |
| Control Mode | PLC-controlled speed regulation and differential pressure signal alarm |
| 5-stage Filter System |

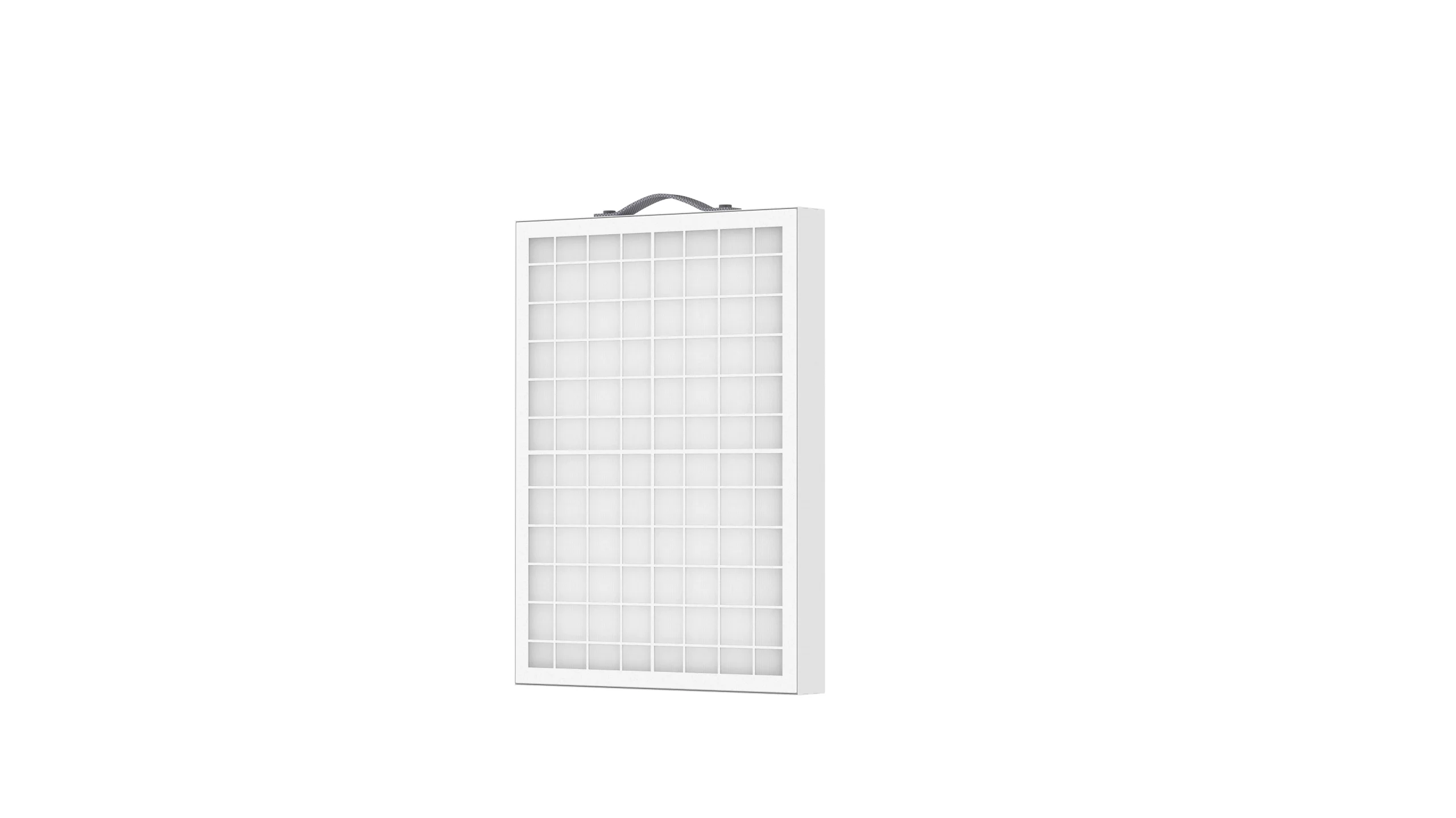

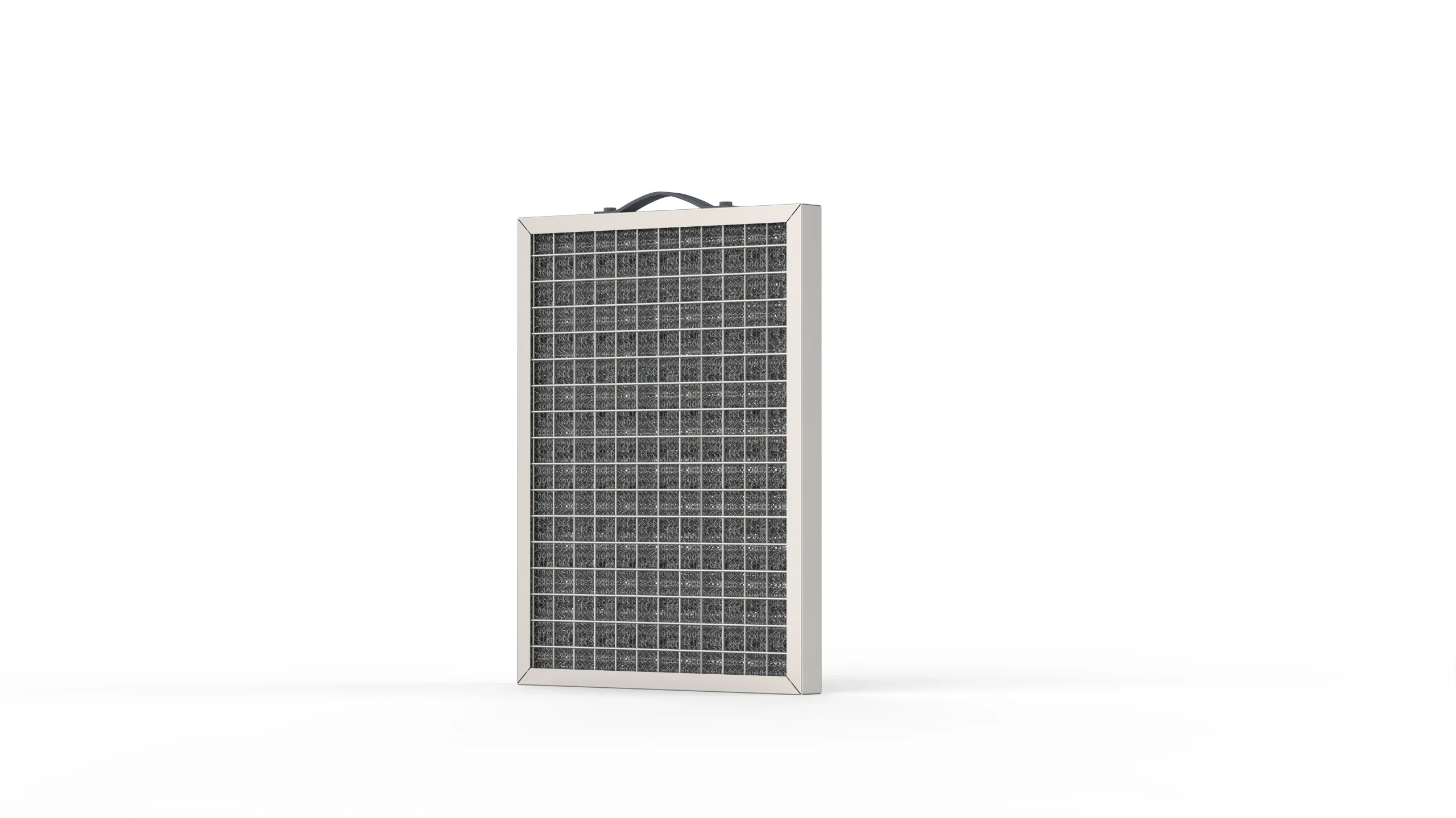

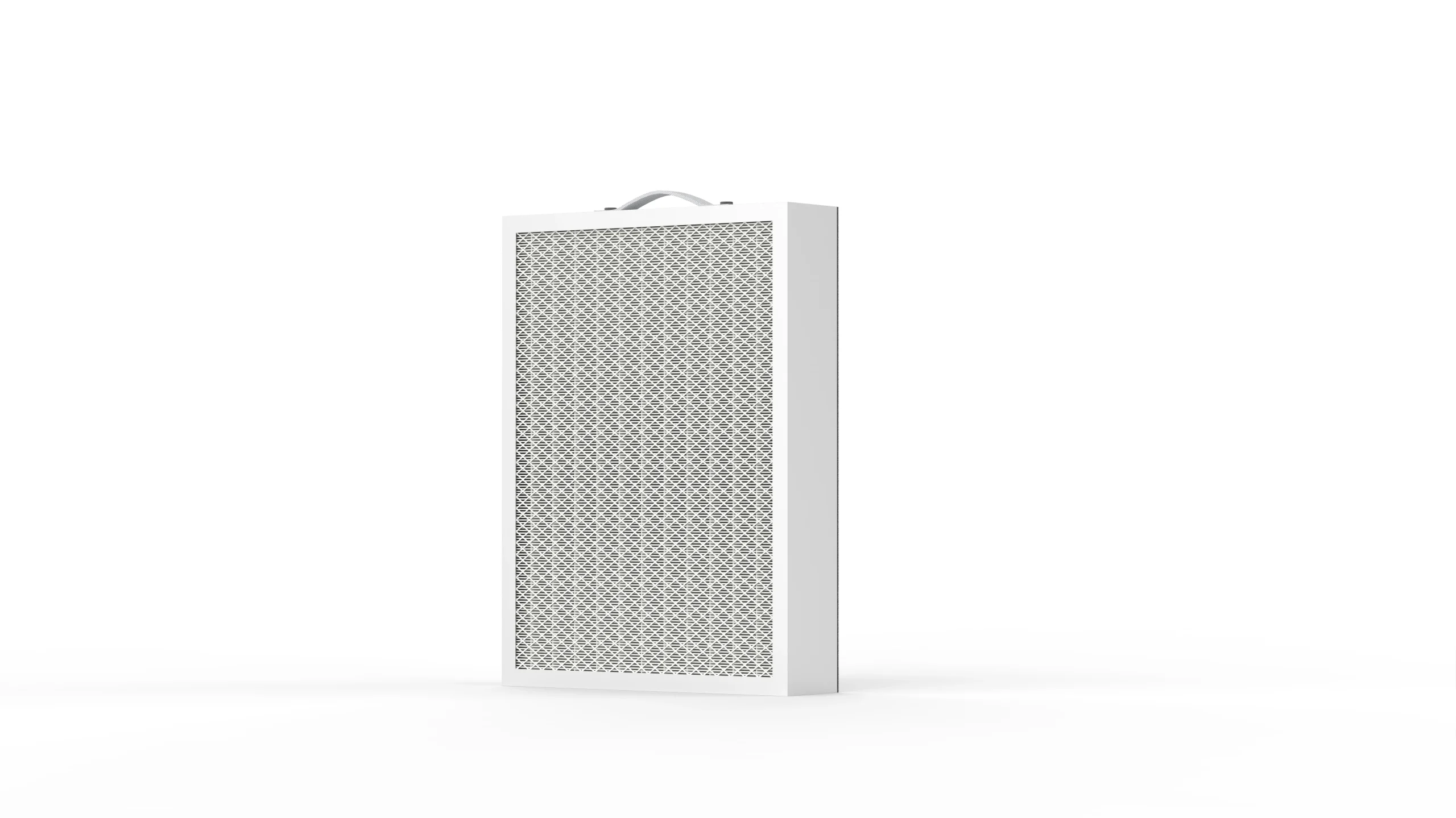

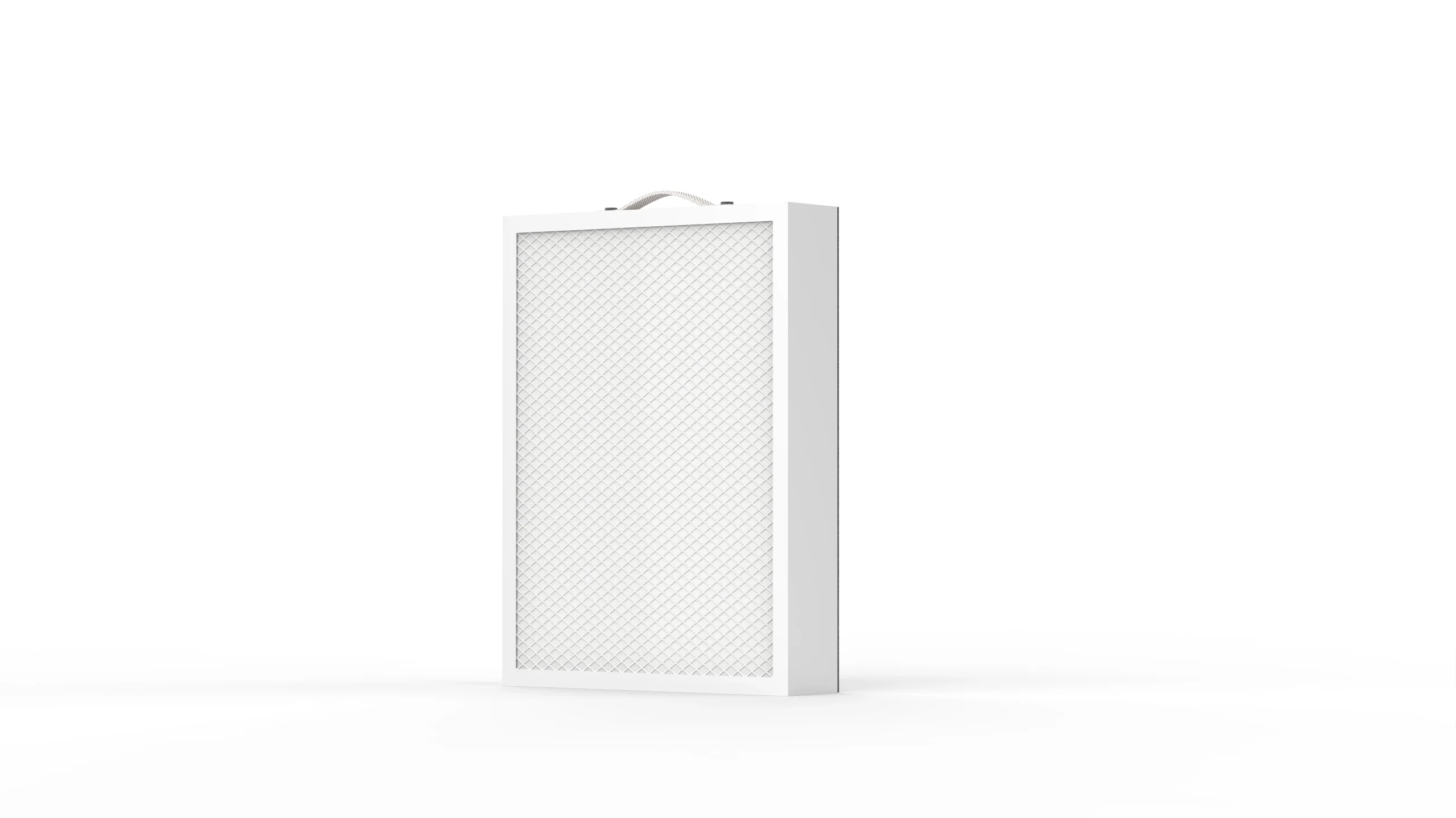

SS Protection — 99.99% fire protection G5 Pre-Filter — ≥85% efficiency (≥5 μm) F8 Medium Filter — ≥85% efficiency (0.3 μm) MOF Carbon + H11 — Gas-phase molecules & VOC adsorption H13 HEPA — 99.99% efficiency (0.3 μm) |
If your workspace generates dust, fumes, odors, or airborne particles that affect air quality, equipment performance, or employee safety, a dedicated air filtration system like Thunder Air is highly recommended. It helps maintain a clean working environment, reduce health risks, and protect sensitive equipment from contamination.
Thunder Air is built for long-term reliability and low maintenance costs. With durable multi-stage filters, intelligent monitoring, and industrial-grade construction, it reduces downtime, extends filter life, and lowers total cost of ownership. For professional environments that value safety, stability, and consistent air quality, it is a cost-effective long-term solution.
Thunder Air is designed for a wide range of professional environments, including workshops, studios, factories, laboratories, and educational facilities. It effectively handles dust, fumes, and odors generated during various production processes, making it a versatile solution for both light-duty and industrial applications.
Thunder Air is compatible with the following Thunder Laser machines:
(1)Bolt Series, including Thunder Bolt, Thunder Bolt Plus, Thunder Bolt Plus 24, Thunder Bolt Pro 22, Thunder Bolt Pro 32 and Thunder Bolt Pro 36;
(2)Nova Series, including Nova 24 and Nova 35;
(3)Nova Plus Series, including Nova Plus 24 and Nova Plus 35;
(4)Titan Series, including Titan 27, Titan 35, Titan Pro 27 and Titan Pro 35
(5)Aurora Series, including Aurora Lite / Aurora UV / Aurora MOPA / Aurora Fiber

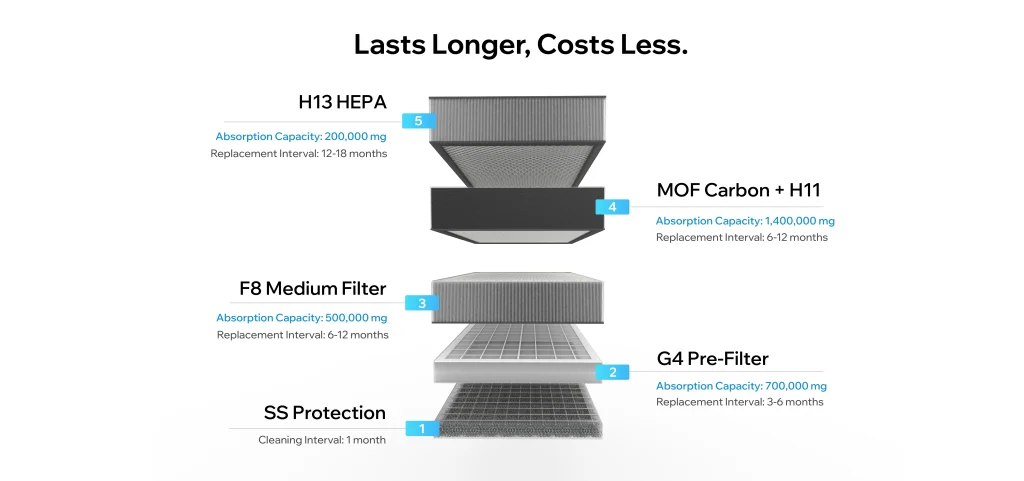

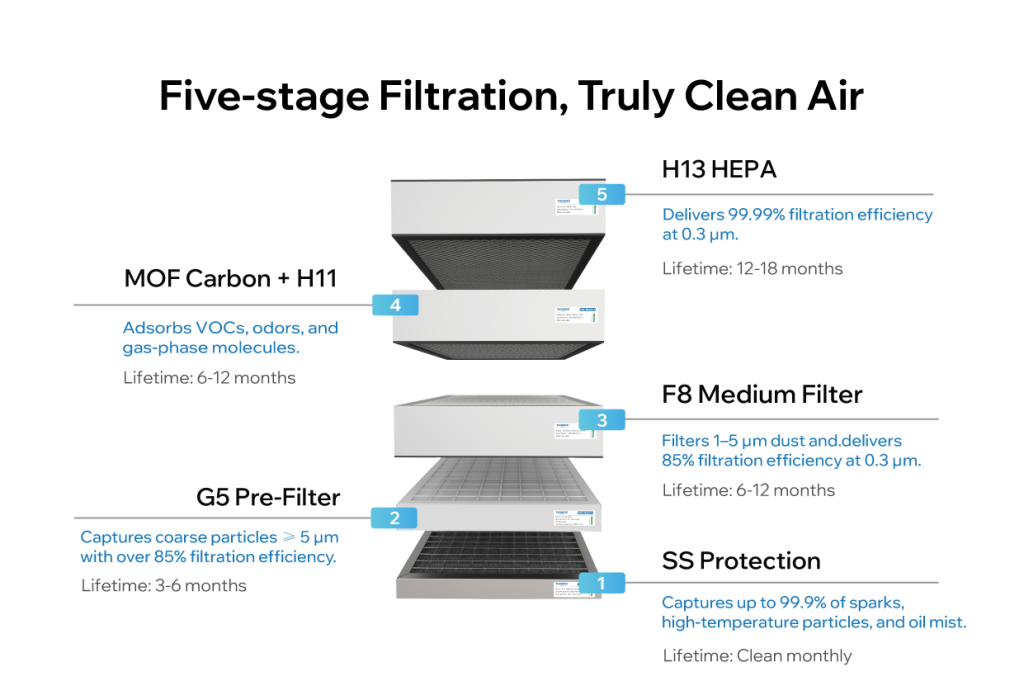

The maintenance schedule varies for each filtration layer:
The pre-protection unit, which blocks large particles, oil, and sparks, should be cleaned roughly every 30 days to maintain peak performance.
The pre-filter typically requires replacement every 3 to 6 months, while the medium filter can last 6 to 12 months depending on usage.
The activated carbon layer, responsible for adsorbing fumes and odors, generally needs replacing every 3 to 6 months, although it may appear saturated sooner in heavy-use environments.

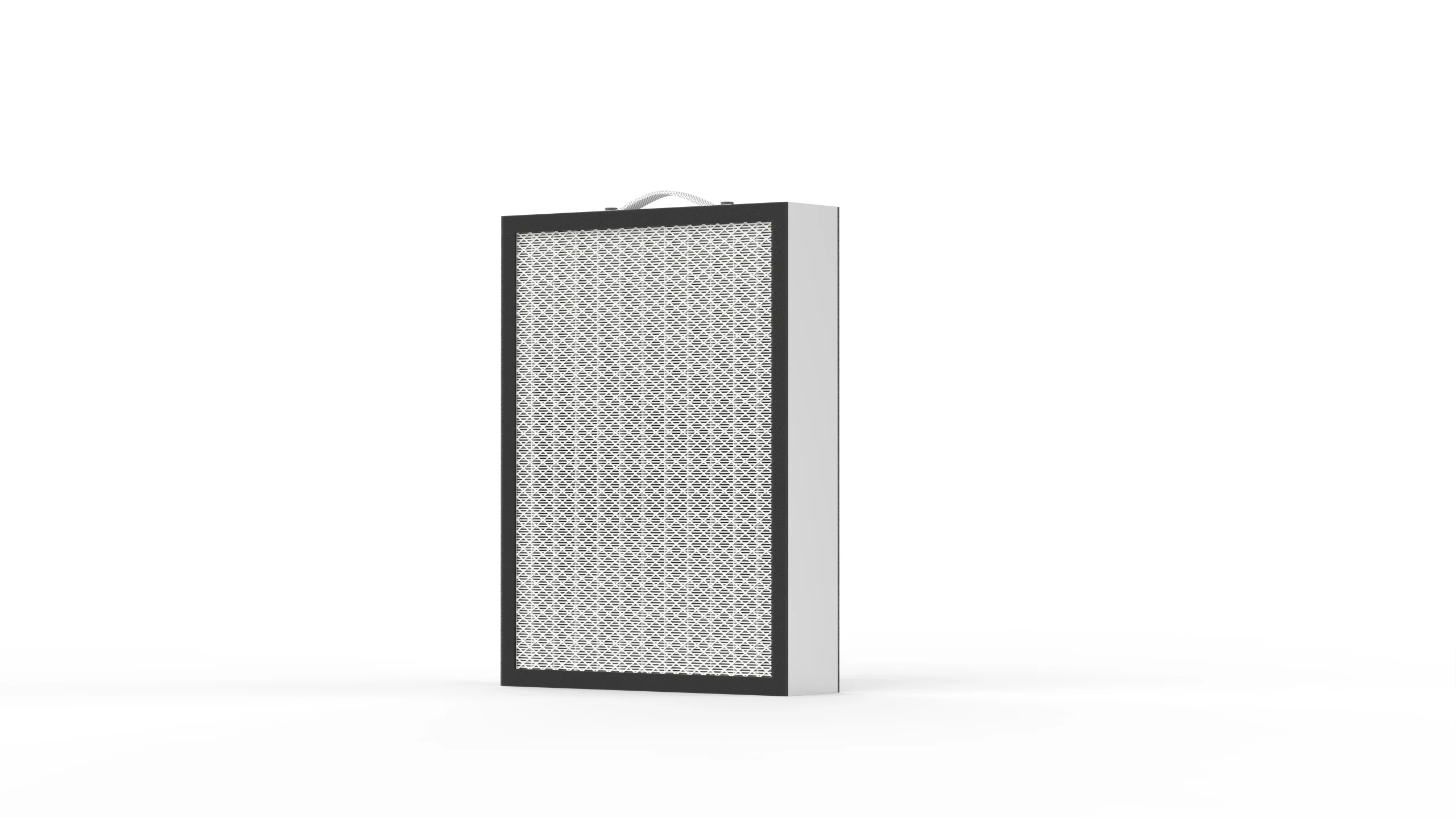

The high-efficiency HEPA filter provides long-term protection and usually lasts between 12 and 18 months.
Thunder Air’s intelligent monitoring system will notify you when any layer requires attention, ensuring consistent air quality and reliable operation.
Thunder Air is designed for quiet operation, with a maximum noise level of just 65 dB. This allows it to deliver powerful air extraction while maintaining a comfortable working environment for workshops, studios, and professional facilities.

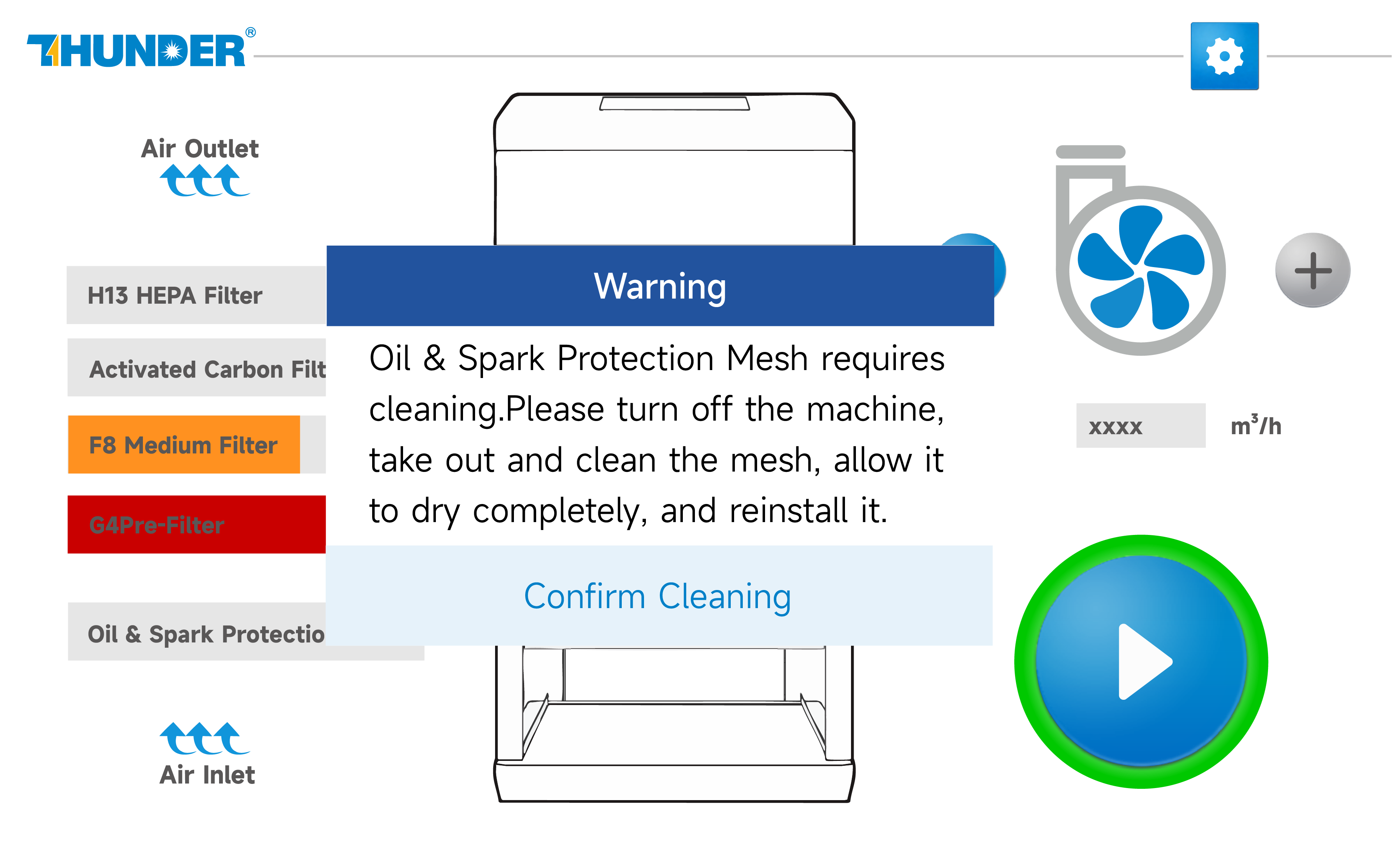

Thunder Air features an intelligent filter monitoring system that tracks filter status in real time. The control panel provides clear visual indicators to notify users when maintenance or replacement is required, ensuring consistent performance and hassle-free operation.
Yes. Thunder Air is designed for plug-and-play installation and simple operation. No complex setup is required—just power on and start using the system immediately.
Whether you’re looking for the right fume extraction solution or want to improve air quality in your workshop, Thunder Laser is here to help. Contact our team for tailored advice, product recommendations, and reliable support for your business.
