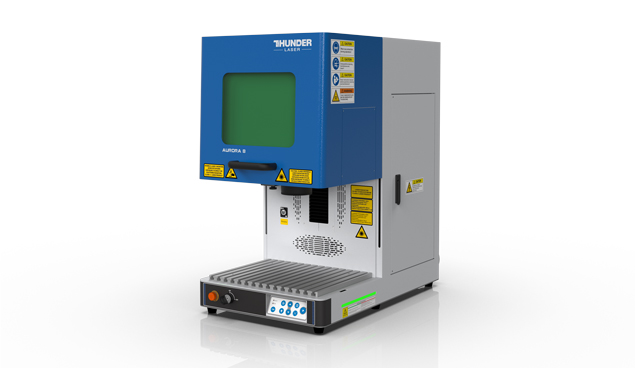

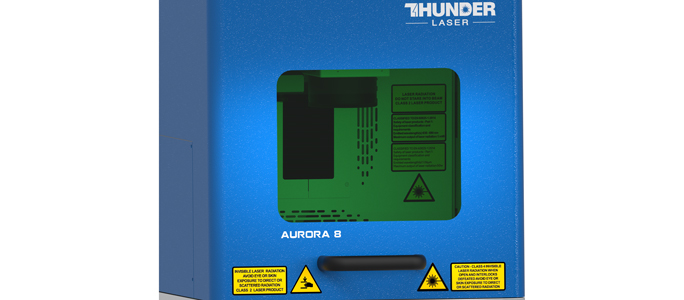

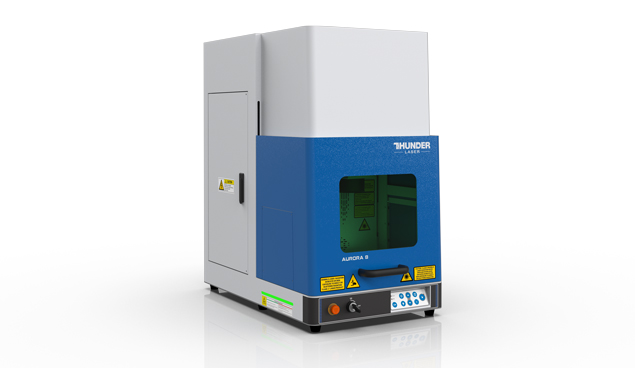

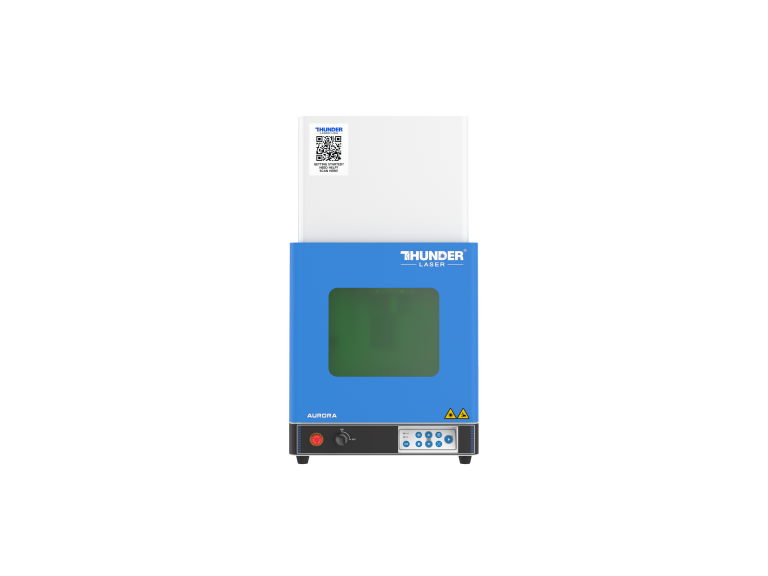

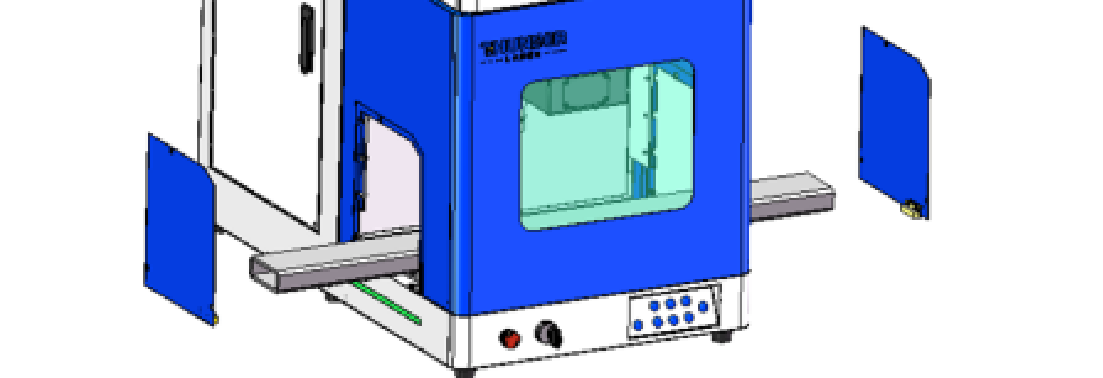

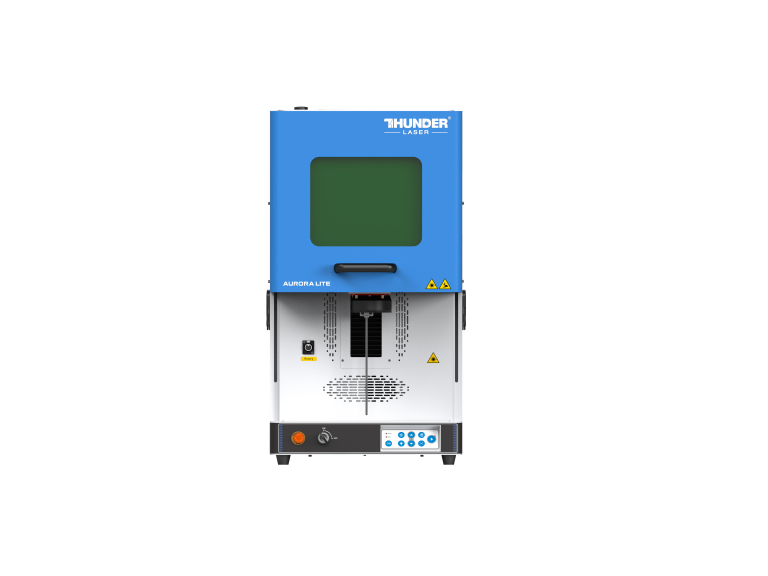

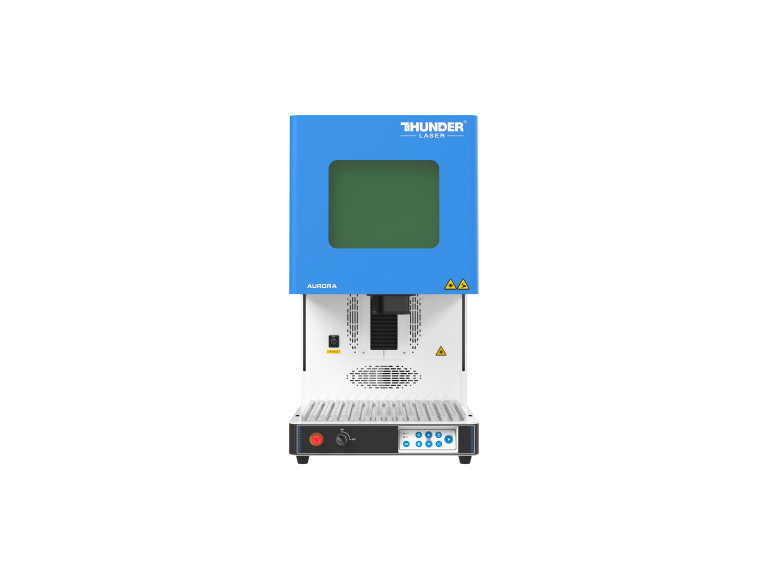

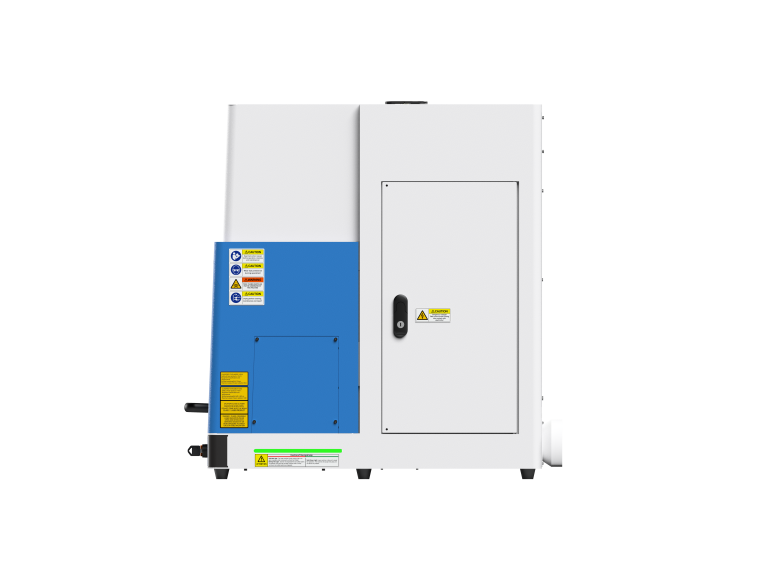

The Aurora series of optical fiber laser marking machines have a fully enclosed cover and a convenient pass-through window that can be used for flat or curved items that are larger than the workspace.
Ideal for: Marking objects with time, date, text, serial number and part number, company logo, icon, symbol, bar code, 2D code, matrix and vector font on all planar, painting, powder coating, anodizing, and electroplating metal surfaces.
**Update: Click here to learn about upgrades to the recent release of the Aurora 2.0
STANDARD SPECS | ||||

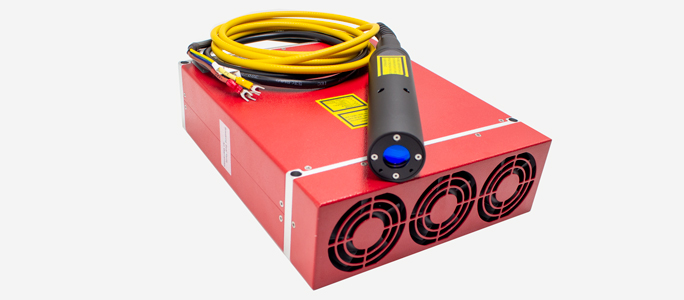

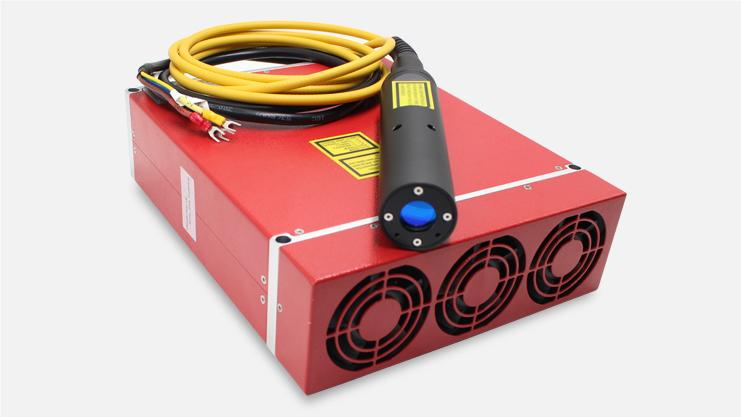

Fiber system | AURORA 8 | AURORA 8 PRO | ||
Marking area | 4.3"×4.3"/110×110mm | 5.9"×5.9"/150×150mm | ||
Max work Height | 7.9"/200mm | 5.7"/145mm | ||
Max marking speed | 2m/sec, 200cps | 8m/sec, 800cps | ||

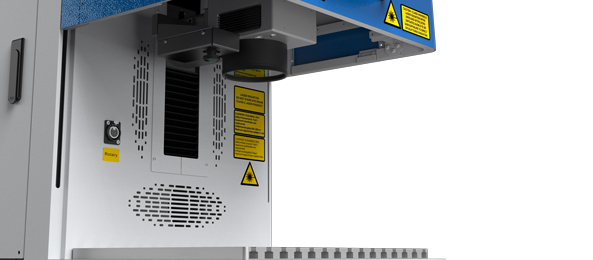

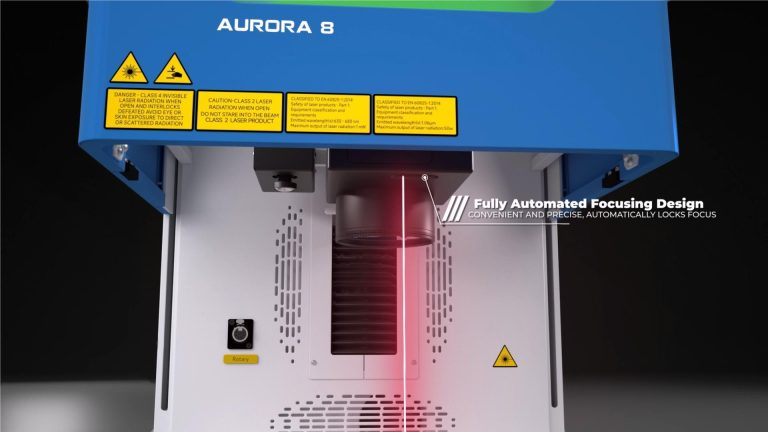

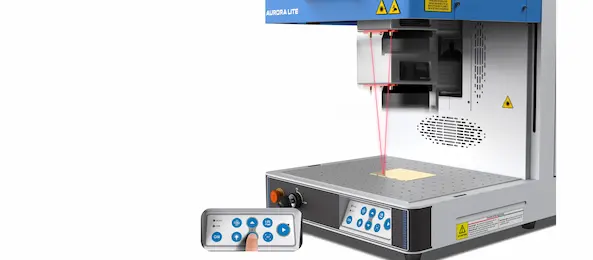

Z-axis | Motorized Z-axis, 15.4"/390mm | |||

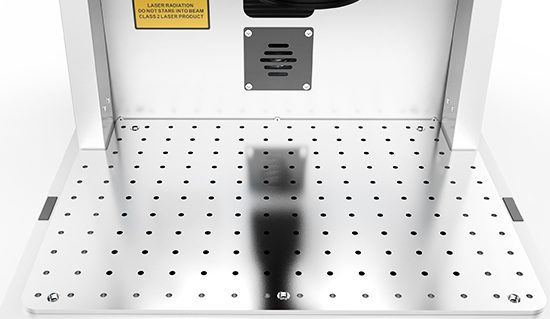

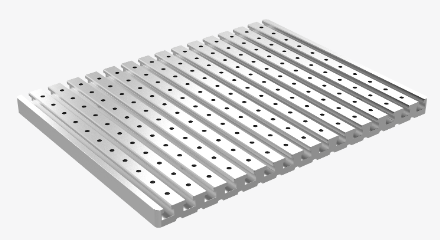

Table | Alumina table, 14.2"×10.5"/360×265mm | |||
Net weight | 71kgs/157lbs | 72kgs/159lbs | ||
Housing dimensions(W*D*H) | 27.7"×17"×32"/703mm×430mm×812mm | |||
Frequency |
20W 20-60kHz |
50W 50-100kHz |
20W(MOPA) 1-4000kHz |
|
Pulse width | 110ns | 2-350ns | ||
Cooling | Air cooled | |||

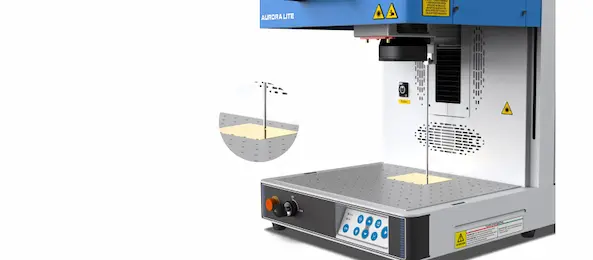

Red dot pointer | Laser Power<1mW, 630-680nm | |||
Software | EzCad2 | EzCad3 | ||

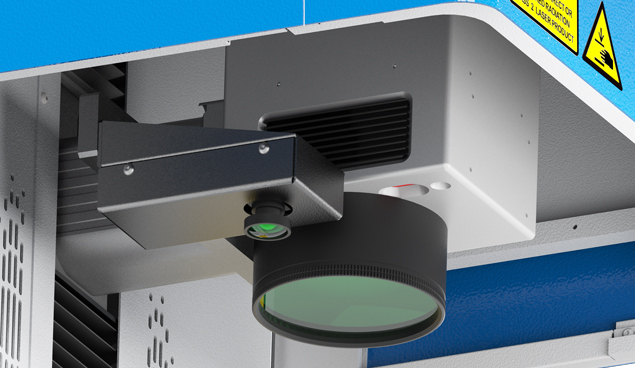

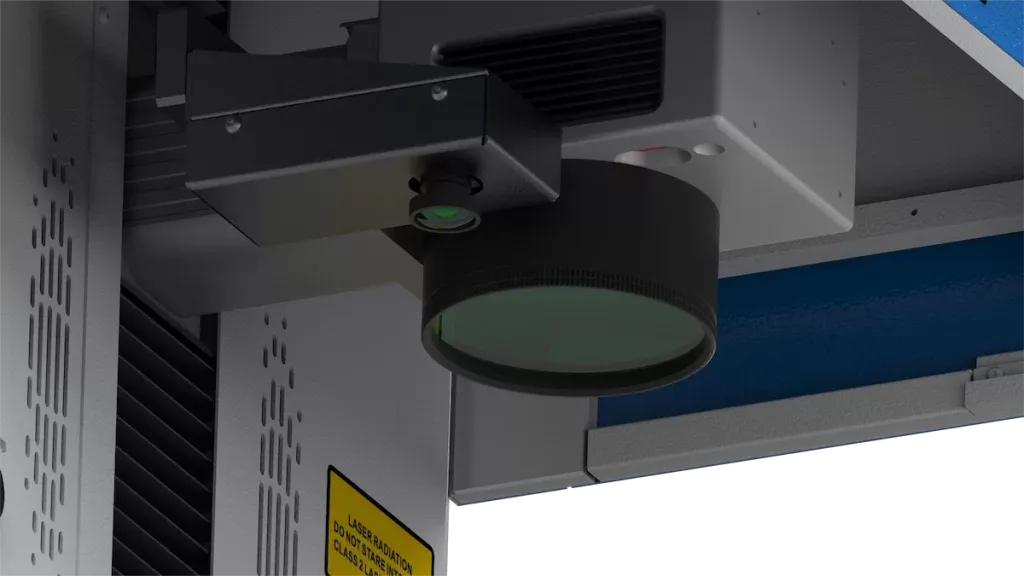

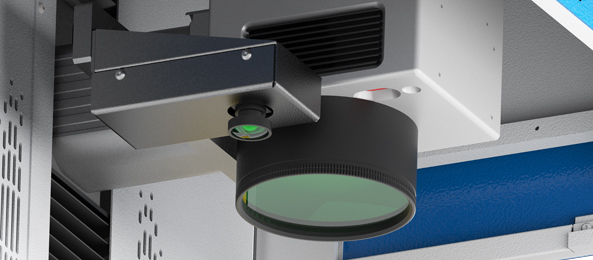

Optional F-theta lenses | 5.9"×5.9"/150×150mm | 7.9"×7.9"/200×200mm | 4.3"×4.3"/110×110mm | 7.9"×7.9"/200×200mm |
Materials | apply |
Metallic materials | √ |
Rigid plastics | √ |
Hardware tools | √ |
Industrial accessories | √ |
Stainless steel | √ |
Carbon steel | √ |
Aluminium | √ |
Iron | √ |
Steel | √ |
The Aurora Laser Making Machine is a compact top of the line machine with a fully enclosed. Our team designed this machine with environmental protection and user friendliness in mind. Suitable for small businesses and home offices.
