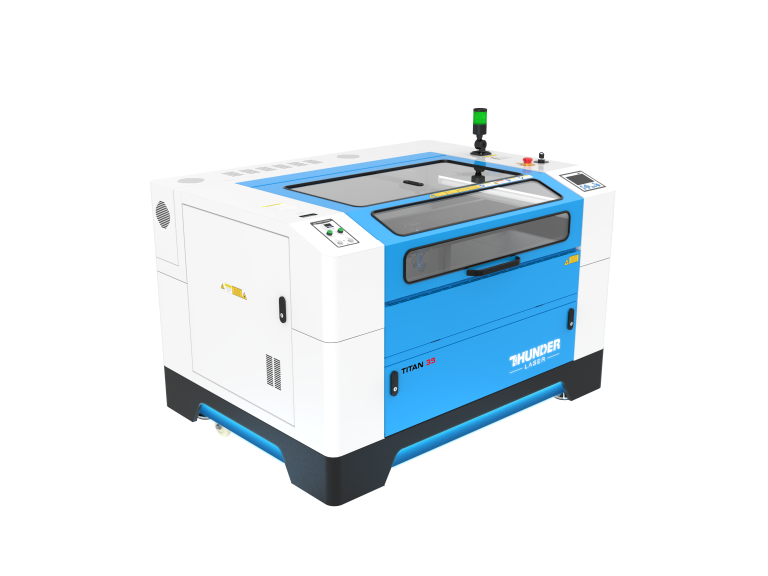

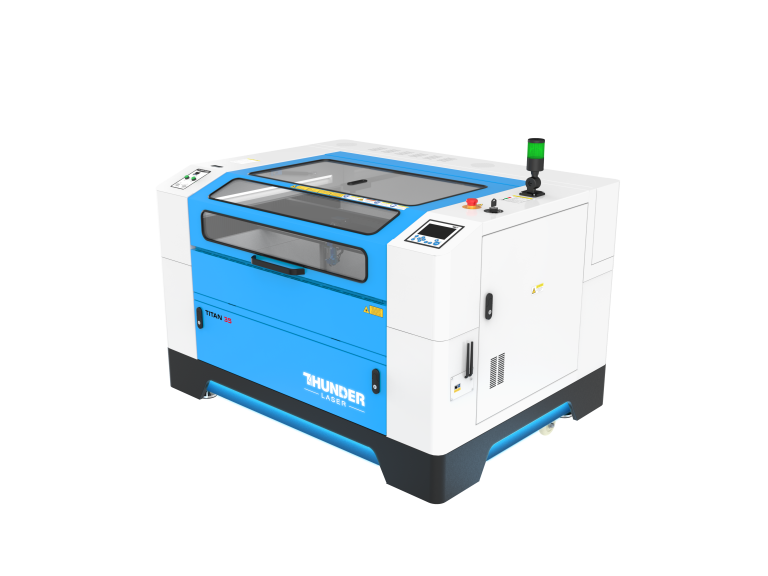

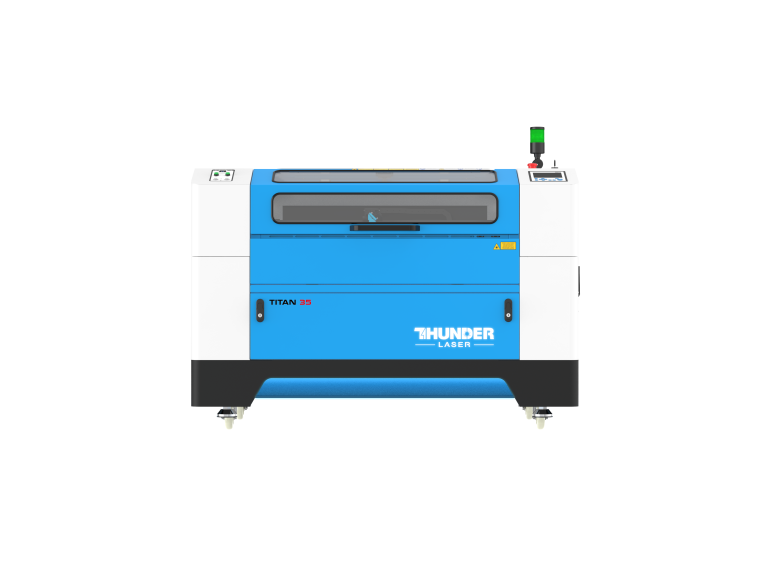

Titan is Thunder Laser’s flagship industrial-grade CO₂ laser cutting and engraving machine, engineered for ultra-fast production, exceptional precision, and superior versatility. Featuring an exclusive dual air assist system and advanced RF metal tube with patented CERAMICORE® technology, Titan delivers flawless cuts and engravings with 0.01mm repeatability.
Capable of speeds up to 3,000mm/s with 8G acceleration, Titan empowers professionals across industries to elevate your productivity and quality to the highest professional standards.
Specification | Titan 27 | Titan 35 | Titan 51 | |
Dimension | 1350×1070×1100 mm (53.15″ × 42.13″ × 43.31″) |
1550×1170×1110 mm (61.02″ × 46.06″ × 43.70″) |
1950×1470×1110 mm (76.77″ × 57.87″ × 43.70″) |
|
Working Area | 700×500 mm (27.56″ × 19.69″) |
900×600 mm (35.43″ × 23.62″) |
1300×900 mm (51.18″ × 35.43″) |
|

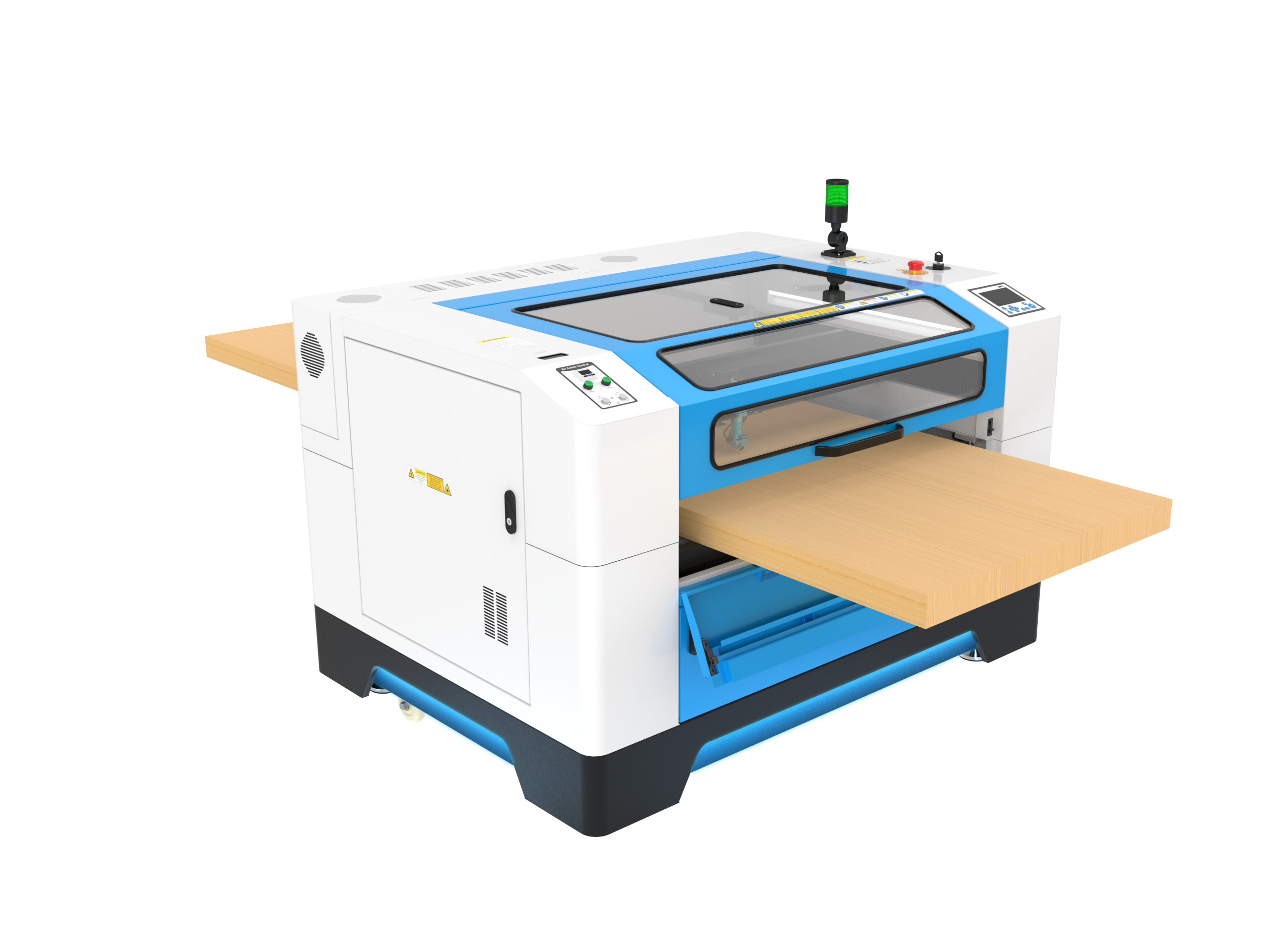

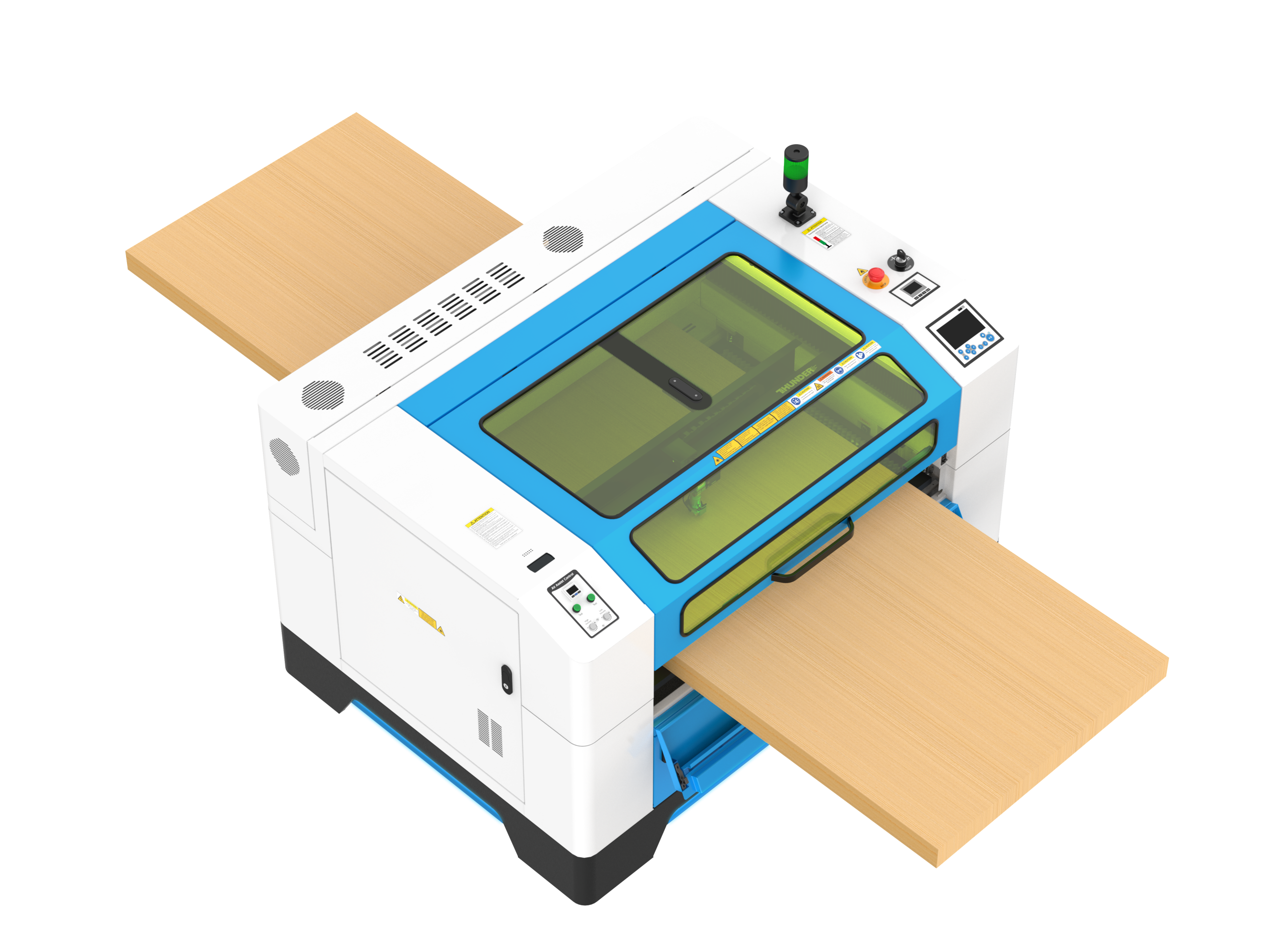

Pass-through Door | 65 mm | 65 mm | 65 mm | |
Z-depth | 230 mm | 230 mm | 230 mm | |
Laser Type | 50 W (Std) / 60-120 W (Opt) | 60 W (Std) / 50-120 W (Opt) | 80 W (Std) / 50-120 W (Opt) | |
Dual-Laser System | No | No | No | |
Cooling Method | Air Cooling | |||
Max Speed | 3000 mm/s Engraving & 300 mm/s Cutting | |||
Acceleration Speed | 8 G (80 000 mm/s²) | |||
Motion Control System | AC Servo Motor for X/Y Axis | |||
Positioning Accuracy | ≤ 0.01 mm | |||

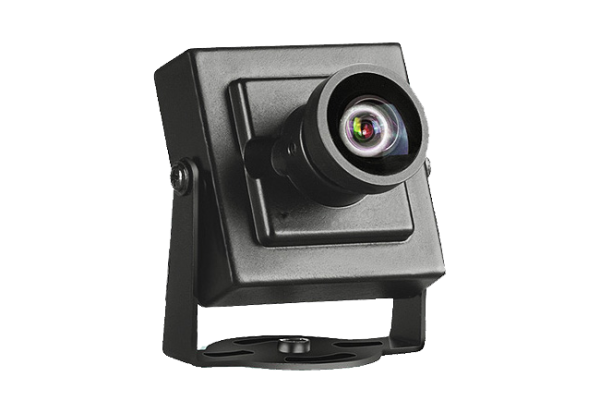

Top Camera | 1× 5 MP | 1× 5 MP | 2× 5 MP | |
Head Camera | 1× 5 MP Mark Point Camera | |||

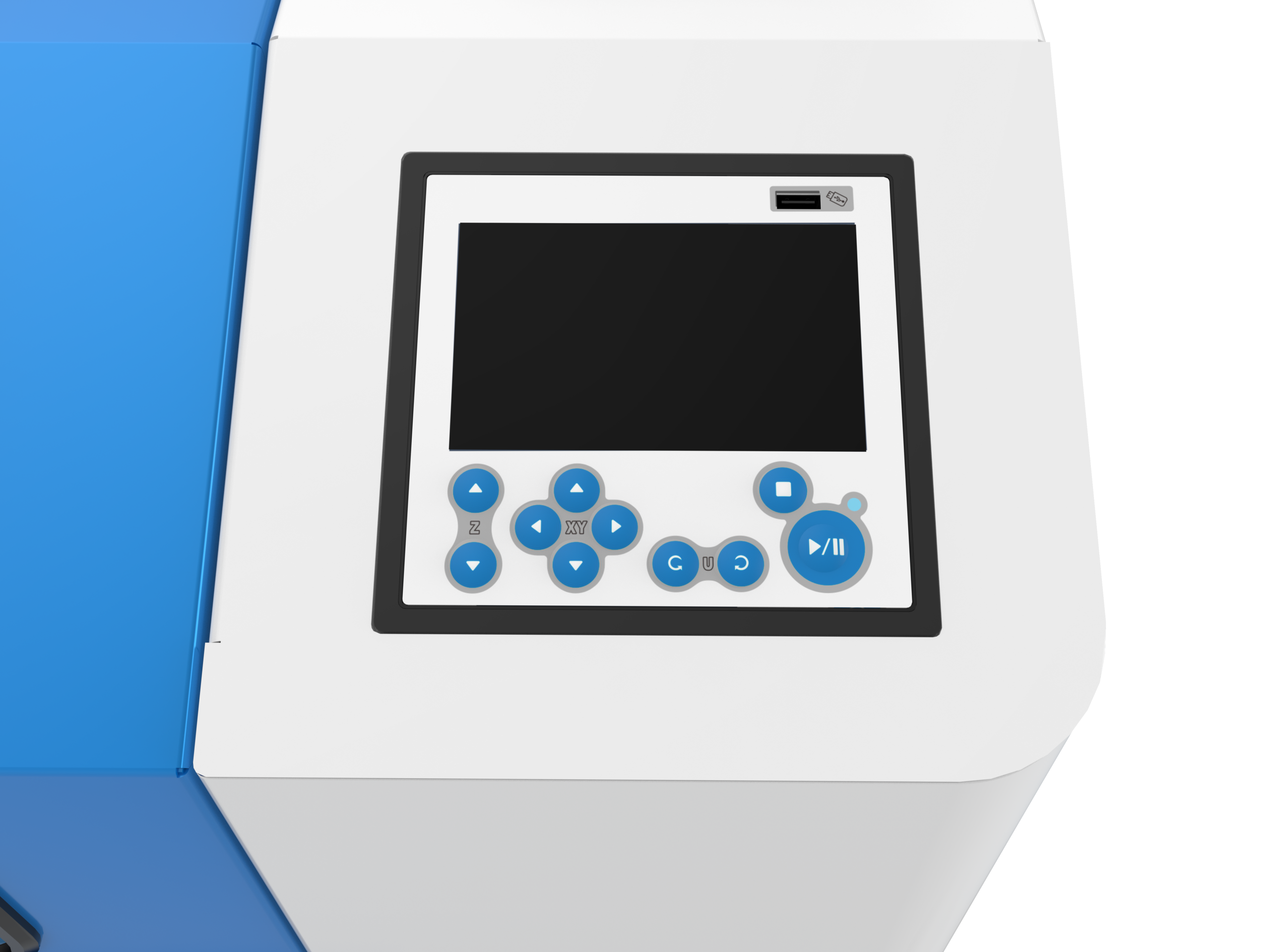

Control Panel | 5-inch Capacitive Touch Screen | |||
Internal Memory | 1 GB (1024 MB) | |||
Operating System | Windows & macOS | |||

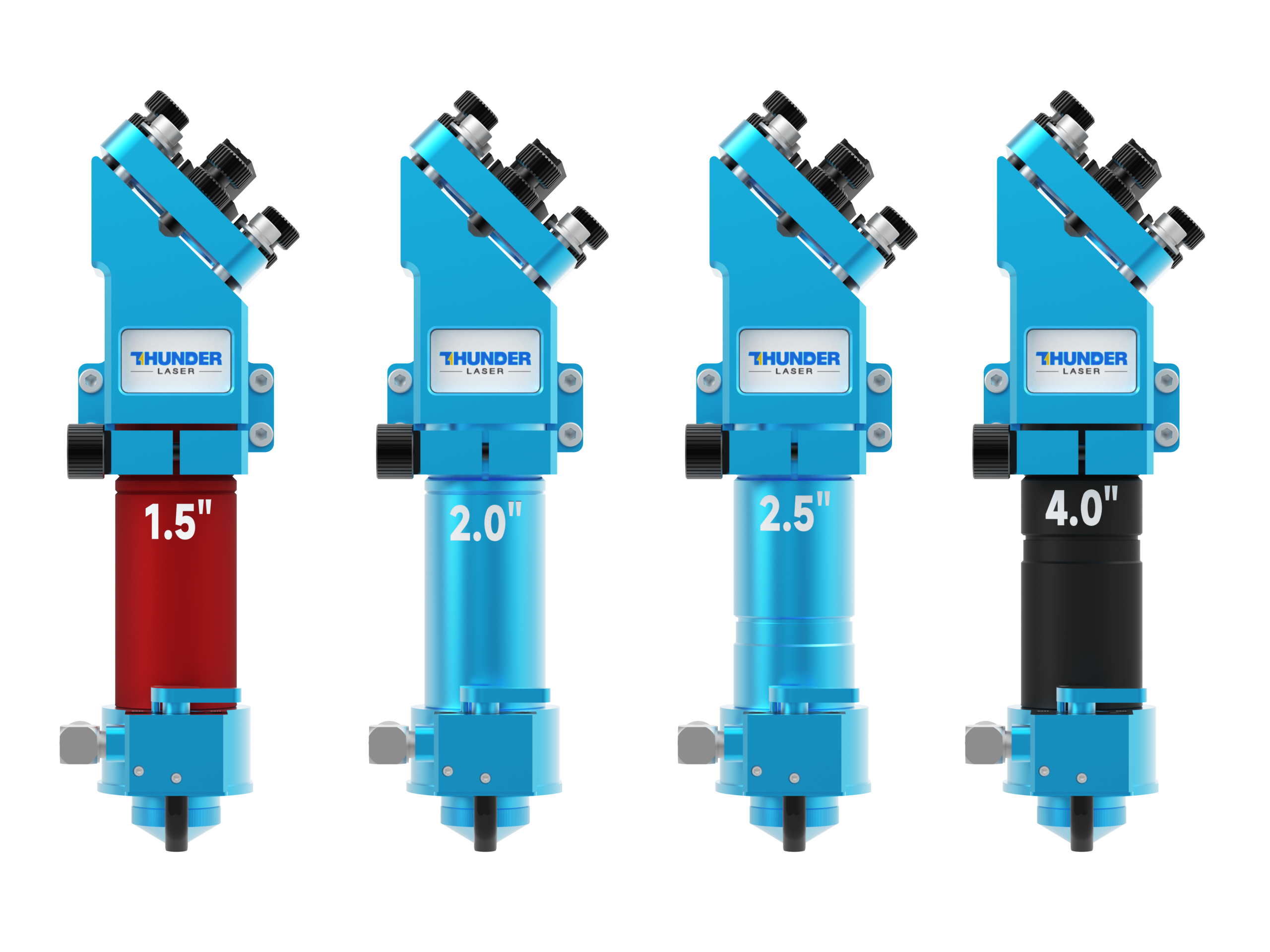

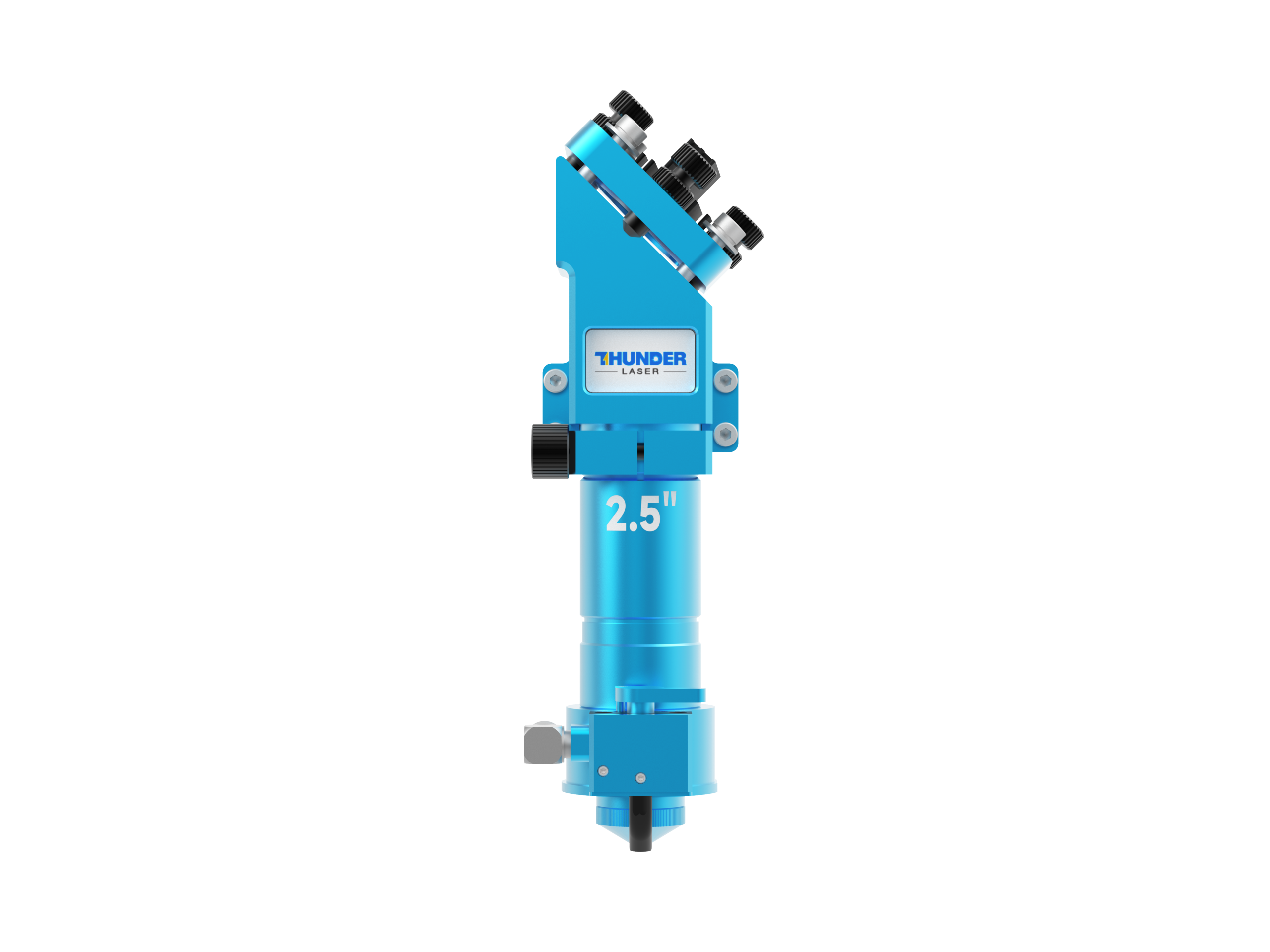

Lens | 2.5″ (Std) / 1.5″, 2.0″, 4.0″ (Opt) | |||
Safety Level | FDA & CE Certification | |||

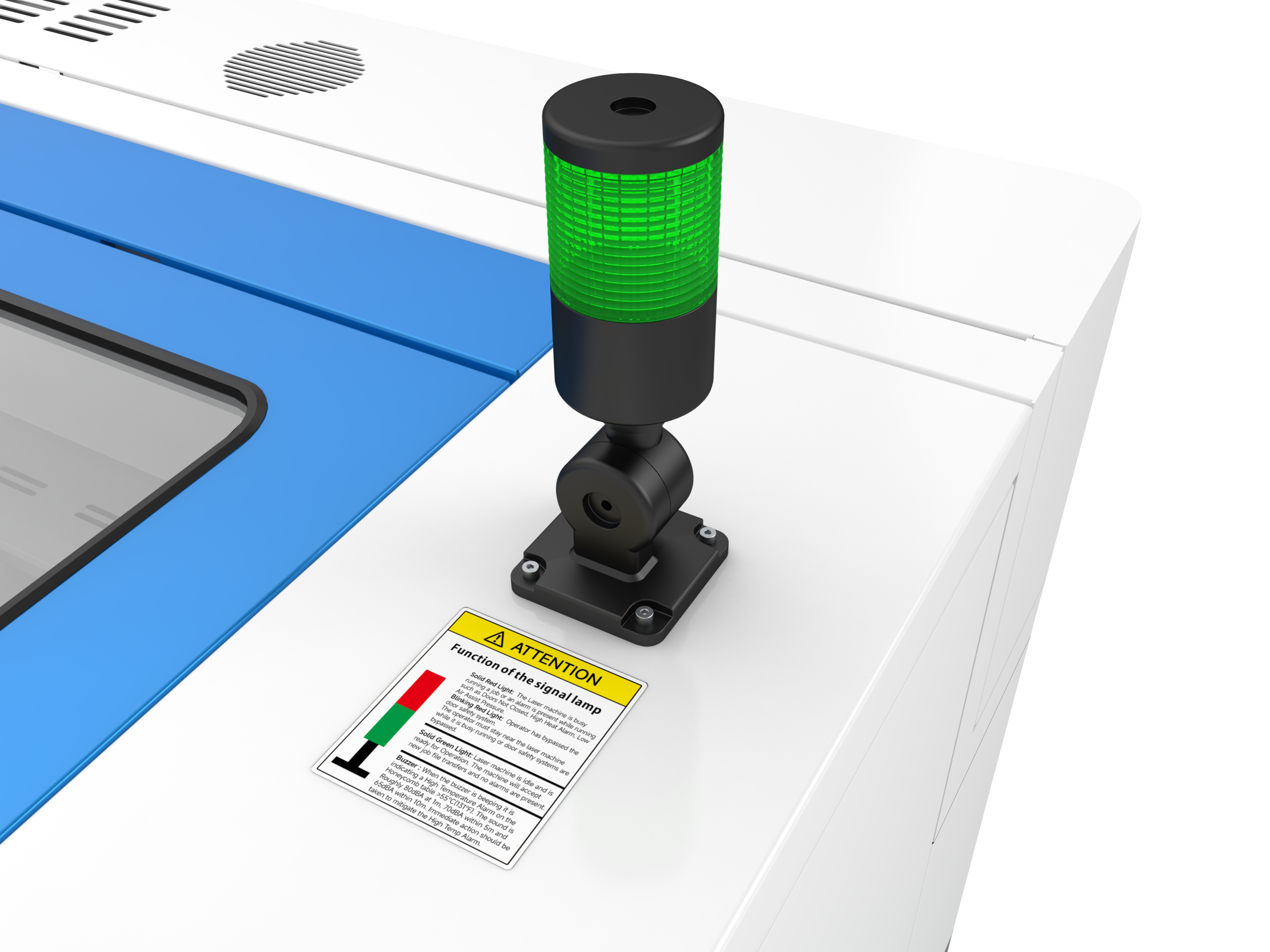

Warning Indicator Light | Green: Standby / Safe | Red: Processing / Hazard | |||

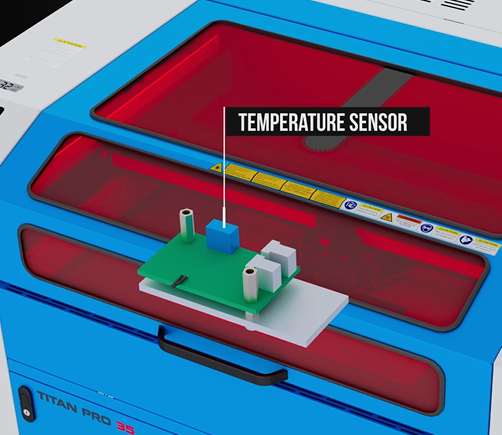

Fire Alarm Buzzer | Auto trigger at 55 °C platform temperature | |||
Lid Material | Transparent Tempered Glass | |||
Lid-opening Protection | Yes | |||
Side Panel Interlocks | Yes | |||

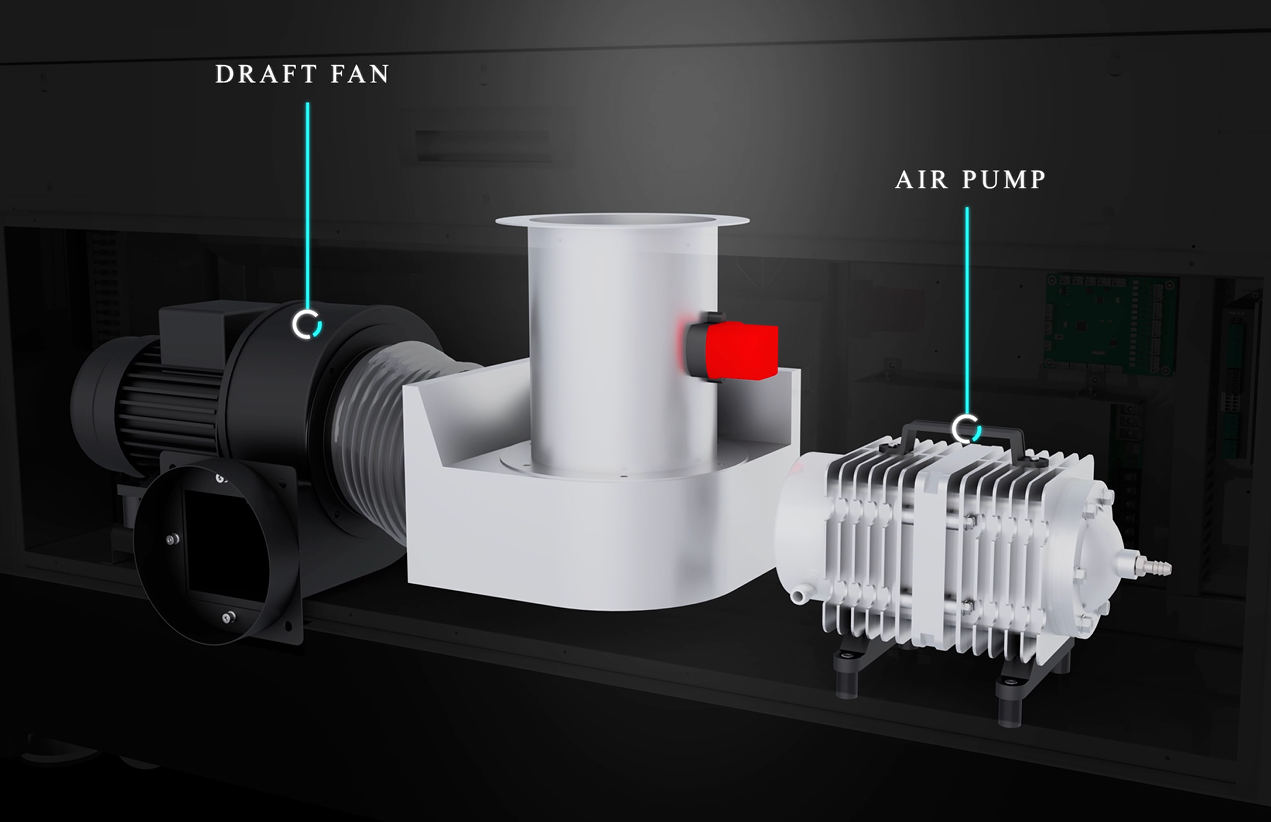

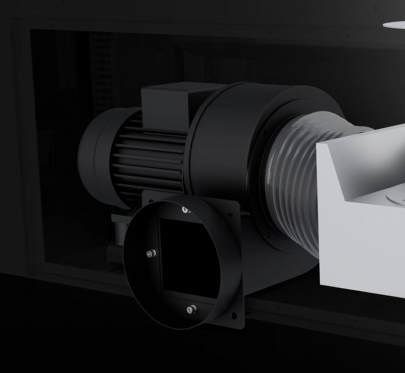

Exhaust System | 1× 550 W Integrated Centrifugal Fan | 1× 750 W Integrated Centrifugal Fan | ||

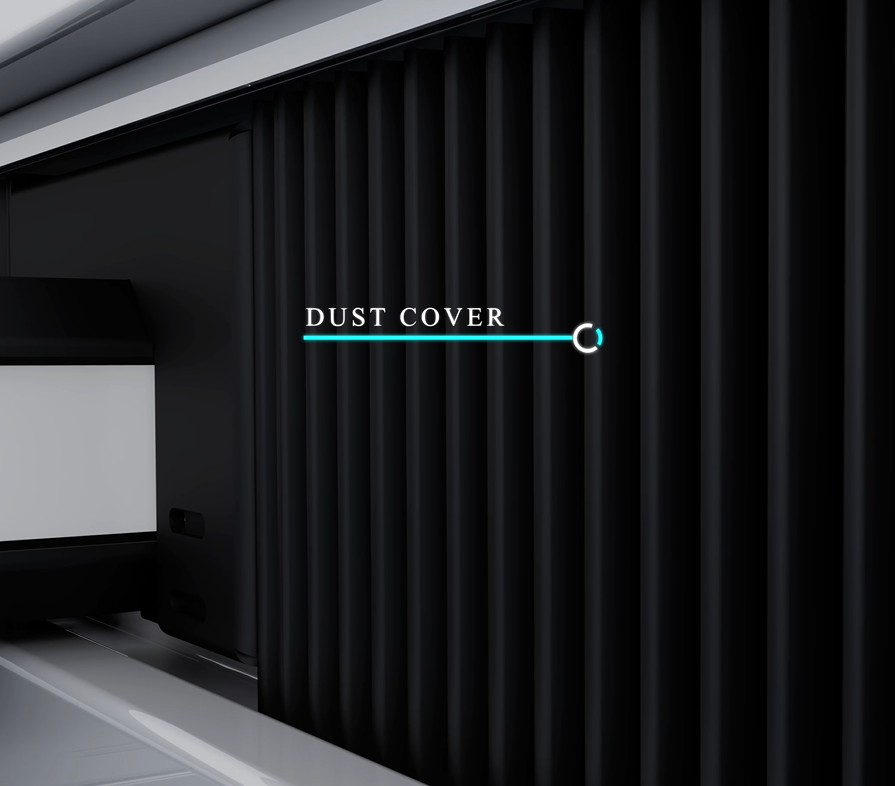

Dust-proof Design | X/Y Axis Closed Rail + Accordion Cover | |||

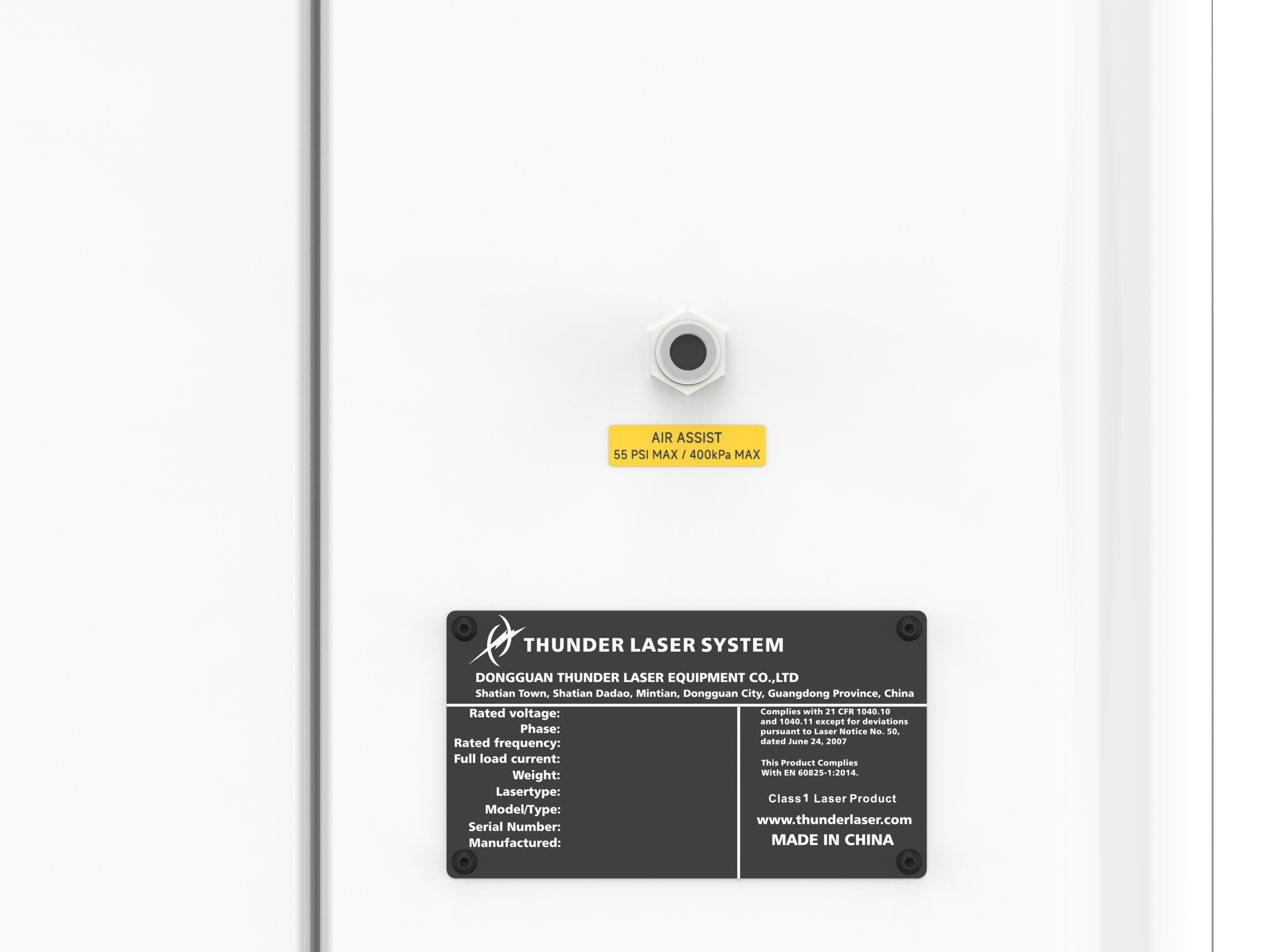

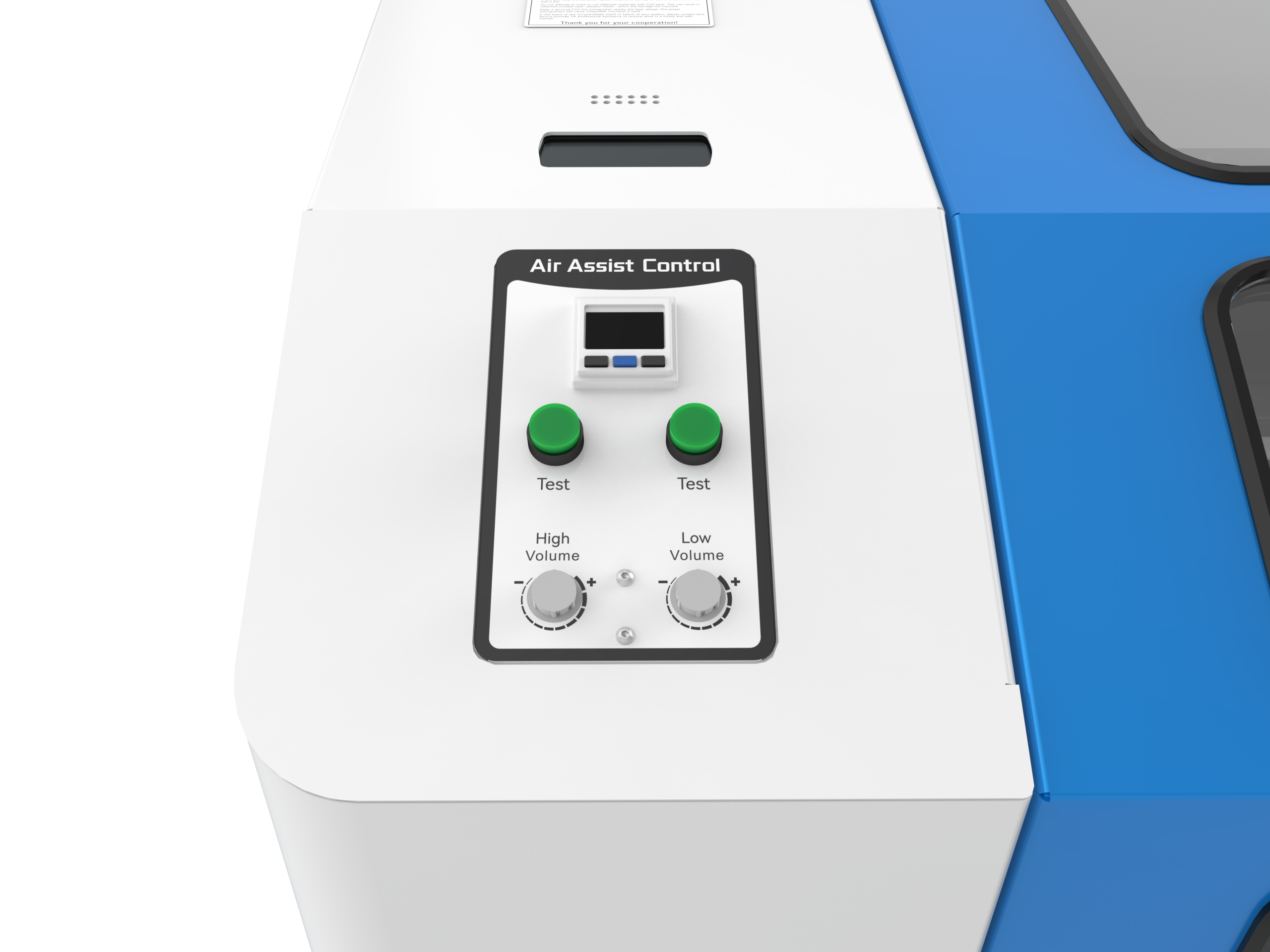

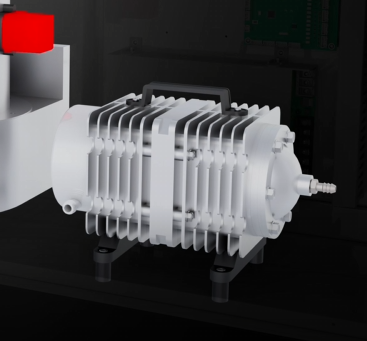

Air Assistance | Inside & Outside Dual-Channel Air Assist | |||
Auto Focus | Yes | |||
Rotary Accessible | Yes | |||
Software | LaserMaker, RDWorks, LightBurn |
Absolutely. Titan Pro is equipped with up to a 120W RF CO₂ laser and a 100W Mopa fiber laser, allowing you to process a wide range of materials—including acrylic, leather, wood, stainless steel, and aluminum—without switching machines. It’s the ideal all-in-one system for diverse production needs.
Switching between CO₂ and fiber lasers is seamless in LaserMaker software. Simply assign different layers to each laser type, and the machine will automatically switch during the job.
You can also manually select the laser source via the Titan control panel, offering flexibility for different workflows.
✅ Layer-based auto switching in software
✅ Manual switching available via control panel
✅ Run CO₂ and fiber tasks within the same job
For example: Use one layer for engraving wood with CO₂, and another layer for marking metal with fiber — no need to pause or reconfigure.

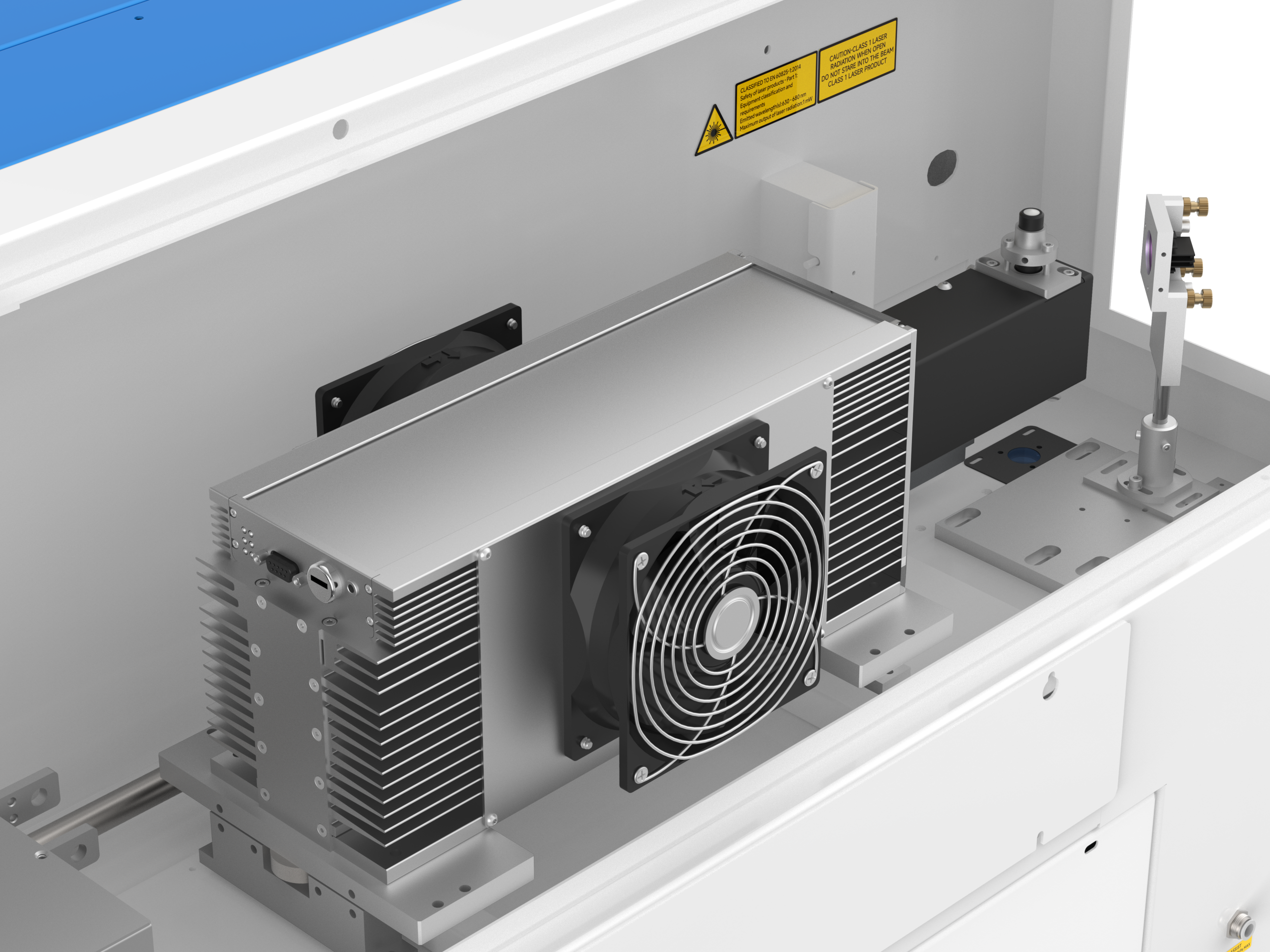

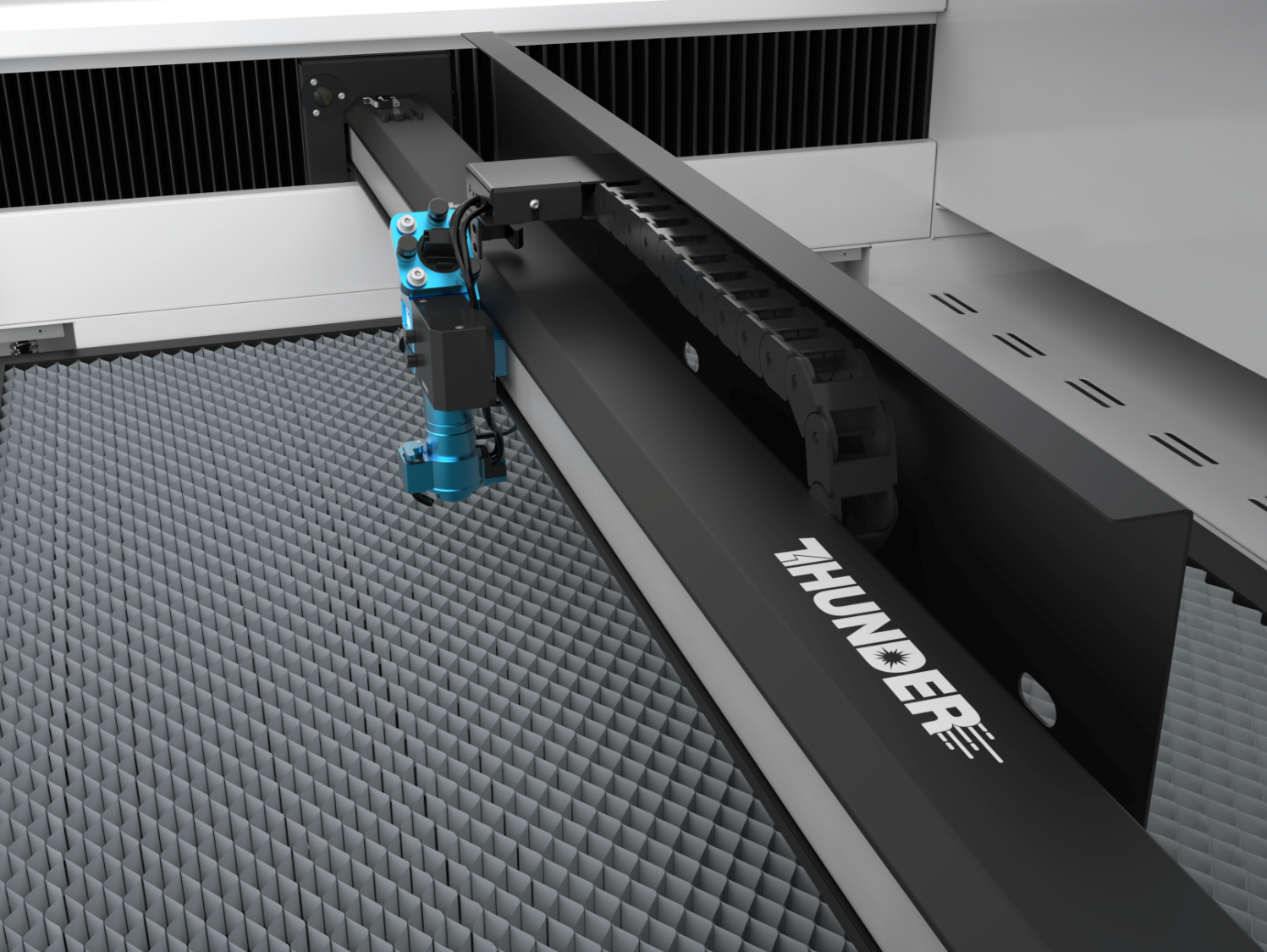

Exceptionally precise. Titan delivers 0.01mm repeatability thanks to its rigid all-metal frame, Hiwin linear guides, and AC servo motors. The Iradion RF laser with patented CERAMICORE® technology ensures ultra-fine beam quality, making it suitable for high-end applications requiring fine detail and tight tolerances.
Yes, it’s built for it. With up to 3000mm/s speed and 8G acceleration, Titan is engineered for fast, continuous workflows. Integrated software supports auto-generation of serial numbers, barcodes, and QR codes—streamlining mass customization, traceability, and data-driven production.

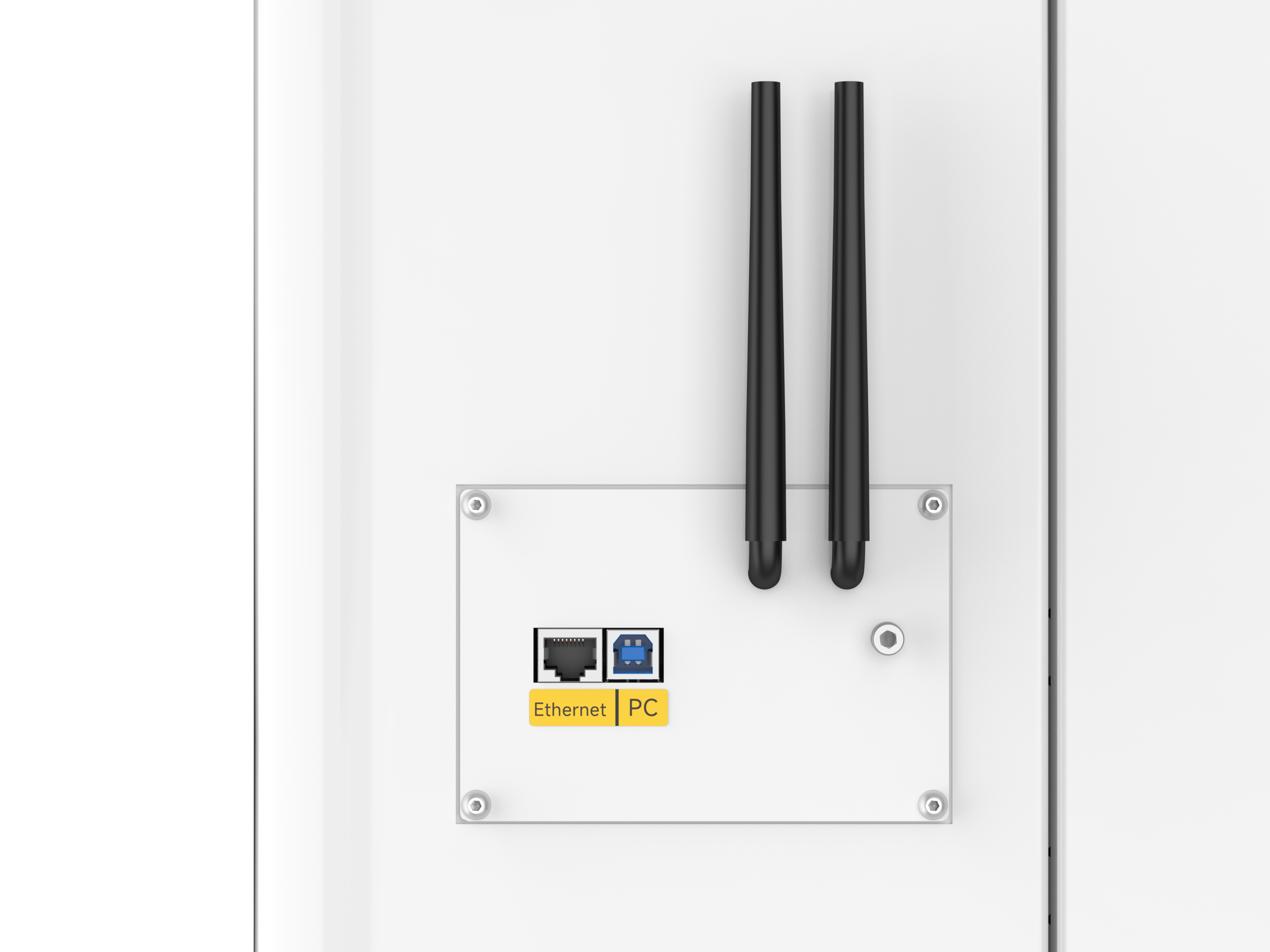

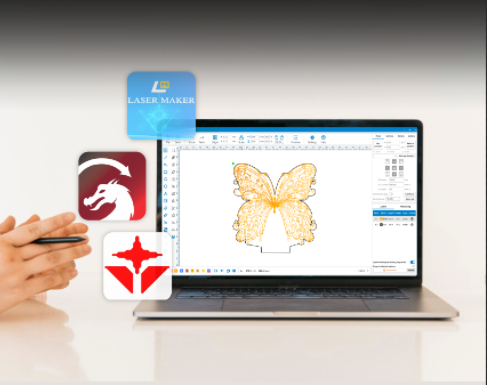

Titan supports LaserMaker, LightBurn, and RDWorks. LaserMaker is optimized for Titan hardware, offering material libraries, live camera previews, and automated layout tools. It also supports Wi-Fi and TCP/IP communication for wireless file transfer and real-time control, keeping your workspace clutter-free and modern.
The key difference lies in the laser configuration:
In short:
Titan = single-source, specialized
Titan Pro = dual-source, all-in-one versatility

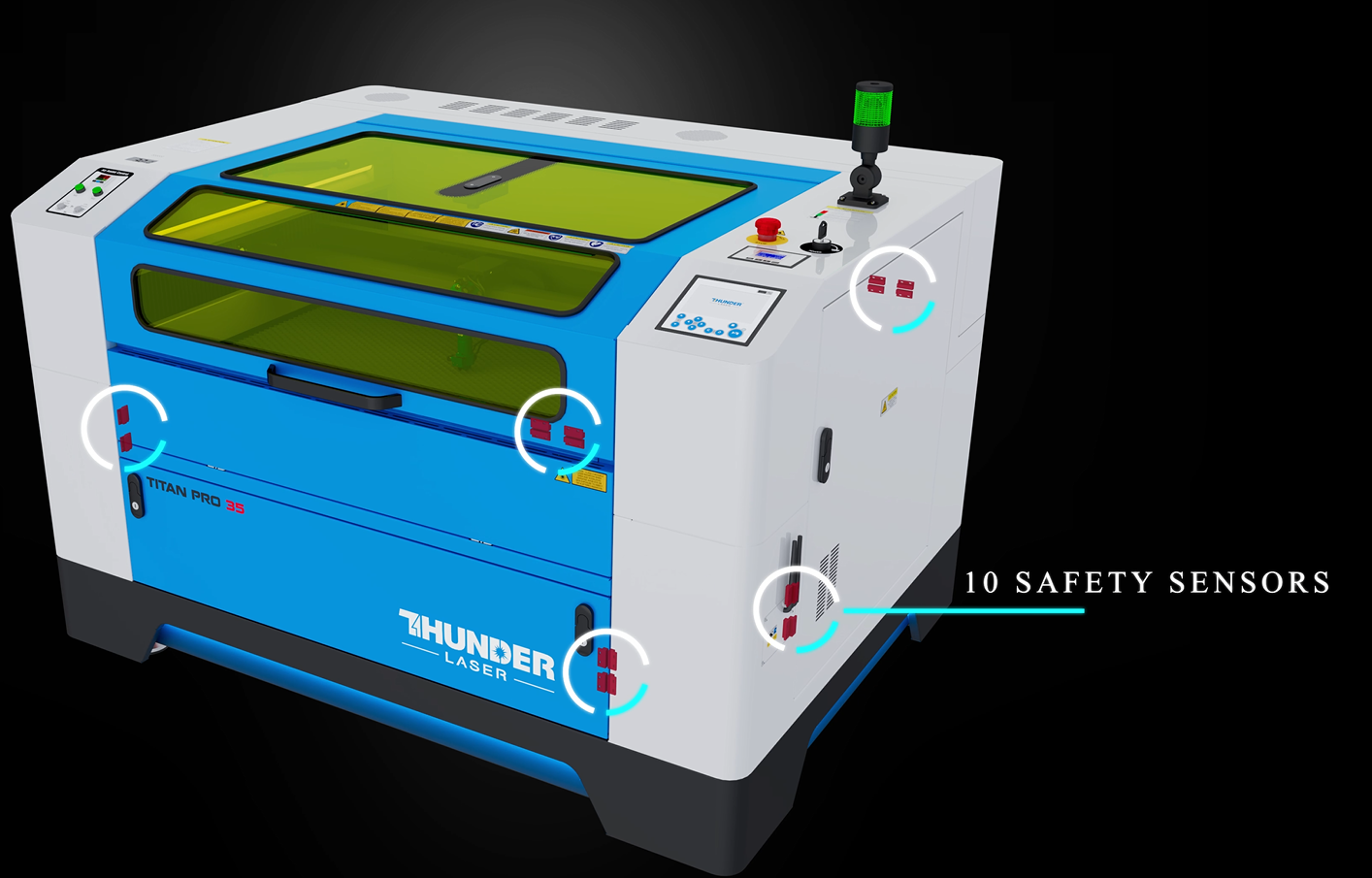

Titan meets Class 1 laser safety standards with features like dual-channel lid detection, real-time door monitoring, laser interlock systems, and a double-layer safety window (tempered glass + fiber shield). Physical shutters and signal isolation protect both laser sources from accidental activation.
Material | Cut | Engrave |
---|---|---|
Basswood | √ | √ |
Cherry Wood | √ | √ |
Birch Ply | √ | √ |
MDF | √ | √ |
Acrylic | √ | √ |
Glass | × | √ |
Anodized Aluminum | × | √ |
POM | √ | √ |
Rubber | √ | √ |

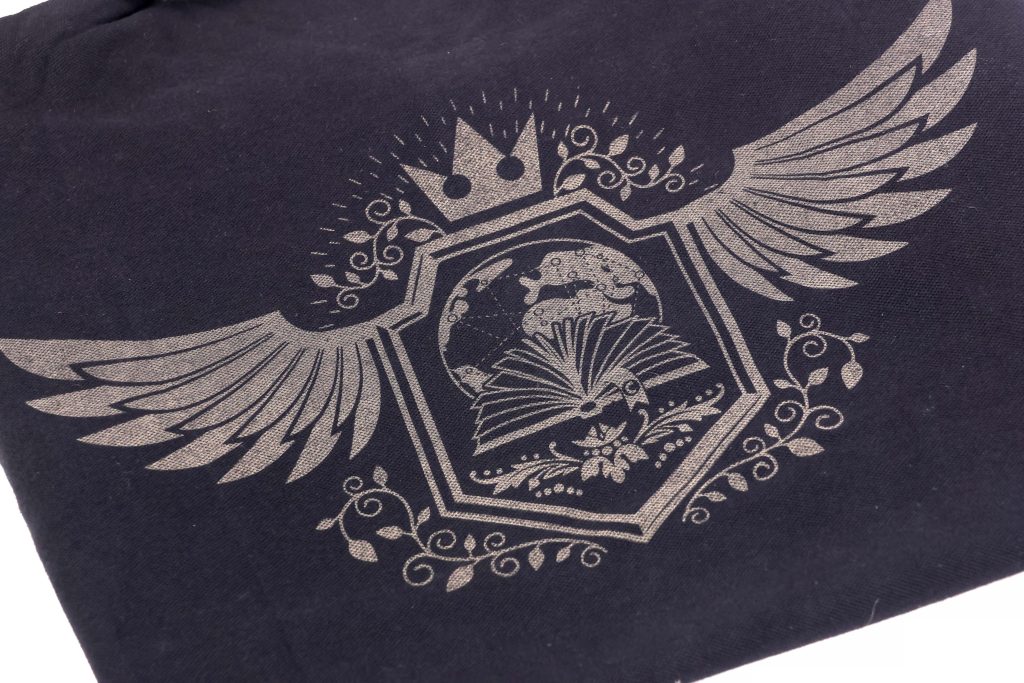

Cotton | √ | √ |
Denim | √ | √ |
Canvas | √ | √ |
Material | Cut | Engrave |
---|---|---|
Leather | √ | √ |
Marble | × | √ |
Ceramic | × | √ |
Cardboard | √ | √ |
Paper | √ | √ |
EVA FOAM | √ | √ |
Cork | √ | √ |
Bamboo | √ | √ |
Denim | √ | √ |
Coated Metals | × | √ |

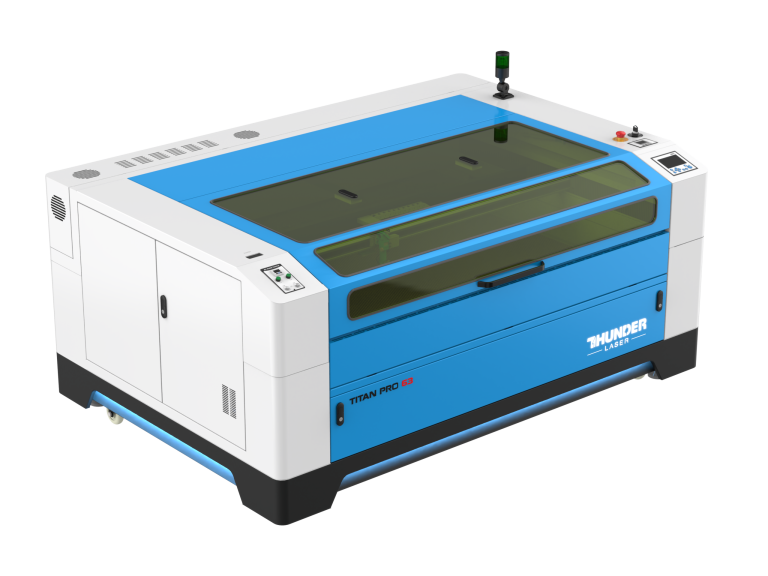

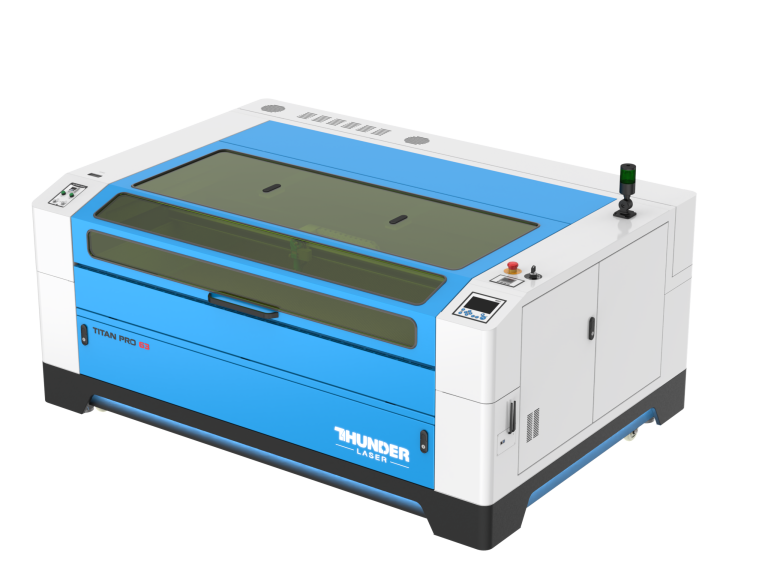

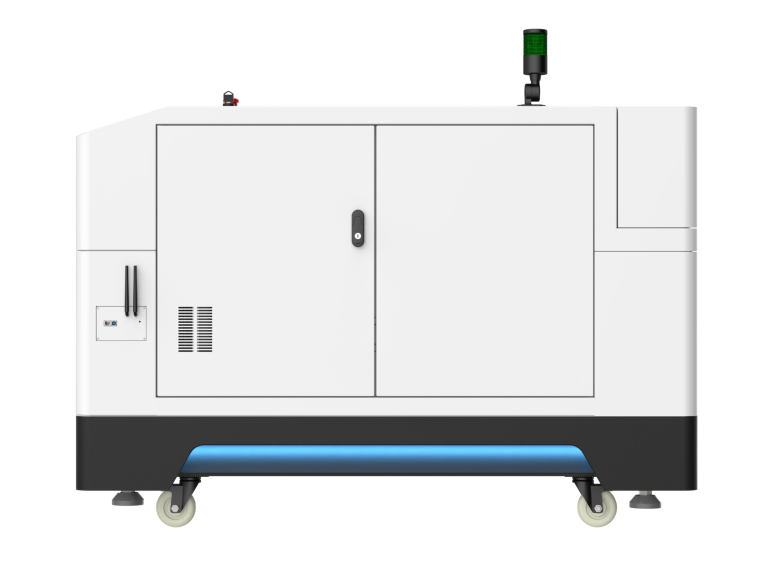

Specification | Titan Pro 27 | Titan Pro 35 | Titan Pro 51 | |
Dimension | 1350×1070×1100 mm (53.15″ × 42.13″ × 43.31″) | 1550×1170×1110 mm (61.02″ × 46.06″ × 43.70″) | 1950×1470×1110 mm (76.77″ × 57.87″ × 43.70″) | |
Working Area | 700×500 mm (27.56″ × 19.69″) | 900×600 mm (35.43″ × 23.62″) | 1300×900 mm (51.18″ × 35.43″) | |
Pass-through Door | 65 mm | 65 mm | 65 mm | |
Z-depth | 230 mm | 230 mm | 230 mm | |
Laser Type | RF CO₂: 50 W (Std), 60-120 W (Opt) Fiber: 100 W (Std), 60 W (Opt) | RF CO₂: 60 W (Std), 50-120 W (Opt) Fiber: 100 W (Std), 60 W (Opt) | RF CO₂: 80 W (Std), 50-120 W (Opt) Fiber: 100 W (Std), 60 W (Opt) | |
Dual-Laser System | Yes | Yes | Yes | |
RF Metal Tube | Yes | |||
Cooling Method | Air Cooling | |||
Max Speed | 3000 mm/s Engraving & 300 mm/s Cutting | |||
Acceleration Speed | 8 G (80 000 mm/s²) | |||
Motion Control System | AC Servo Motor for X/Y Axis | |||
Positioning Accuracy | ≤ 0.01 mm | |||
Top Camera | 1× 5 MP | 1× 5 MP | 2× 5 MP | |
Head Camera | 1× 5 MP Mark Point Camera | |||
Control Panel | 5-inch Capacitive Touch Screen | |||
Internal Memory | 1 GB (1024 MB) | |||
Operating System | Windows & macOS | |||

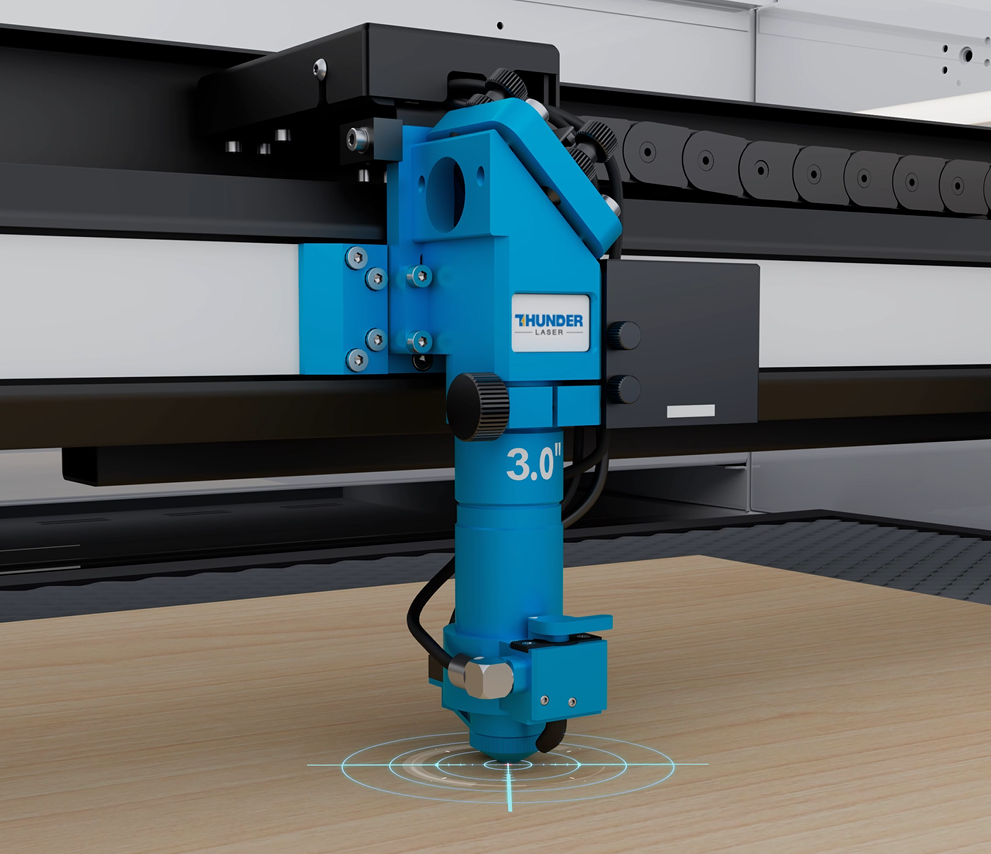

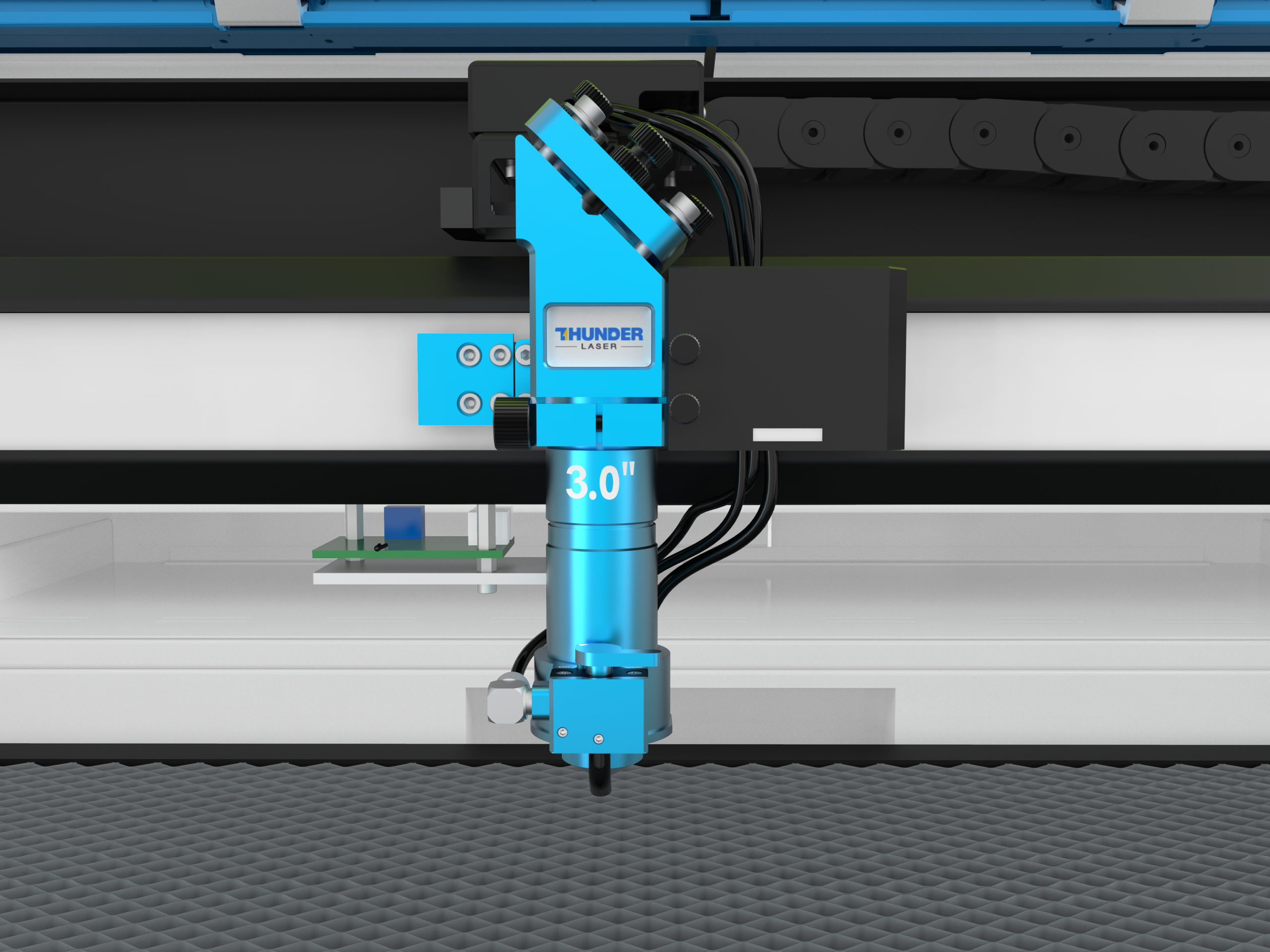

Dual Laser Lens | 3” for Dual Laser (Standard); 1.5″, 2.0″, 2.5″, 4.0″ for RF CO2(Optional) | |||
Safety Level | FDA & CE Certification | |||
Warning Indicator Light | Green: Standby / Safe | Red: Processing / Hazard | |||
Fire Alarm Buzzer | Auto trigger at 55 °C platform temperature | |||
Lid Material | Transparent Tempered Glass + Yellow-Green PC Board | |||
Lid-opening Protection | Yes | |||
Side Panel Interlocks | Yes | |||
Exhaust System | 1× 550 W Integrated Centrifugal Fan | 1× 750 W Integrated Centrifugal Fan | ||
Dust-proof Design | X/Y Axis Closed Rail + Accordion Cover | |||
Air Assistance | Inside & Outside Dual-Channel Air Assist | |||
Auto Focus | Yes | |||
Rotary Accessible | Yes | |||
Software | LaserMaker, RDWorks, LightBurn |
Absolutely. Titan Pro is equipped with up to a 120W RF CO₂ laser and a 100W Mopa fiber laser, allowing you to process a wide range of materials—including acrylic, leather, wood, stainless steel, and aluminum—without switching machines. It’s the ideal all-in-one system for diverse production needs.
Switching between CO₂ and fiber lasers is seamless in LaserMaker software. Simply assign different layers to each laser type, and the machine will automatically switch during the job.
You can also manually select the laser source via the Titan control panel, offering flexibility for different workflows.
✅ Layer-based auto switching in software
✅ Manual switching available via control panel
✅ Run CO₂ and fiber tasks within the same job
For example: Use one layer for engraving wood with CO₂, and another layer for marking metal with fiber — no need to pause or reconfigure.
Exceptionally precise. Titan delivers 0.01mm repeatability thanks to its rigid all-metal frame, Hiwin linear guides, and AC servo motors. The Iradion RF laser with patented CERAMICORE® technology ensures ultra-fine beam quality, making it suitable for high-end applications requiring fine detail and tight tolerances.
Yes, it’s built for it. With up to 3000mm/s speed and 8G acceleration, Titan is engineered for fast, continuous workflows. Integrated software supports auto-generation of serial numbers, barcodes, and QR codes—streamlining mass customization, traceability, and data-driven production.
Titan supports LaserMaker, LightBurn, and RDWorks. LaserMaker is optimized for Titan hardware, offering material libraries, live camera previews, and automated layout tools. It also supports Wi-Fi and TCP/IP communication for wireless file transfer and real-time control, keeping your workspace clutter-free and modern.
The key difference lies in the laser configuration:
In short:
Titan = single-source, specialized
Titan Pro = dual-source, all-in-one versatility
Titan meets Class 1 laser safety standards with features like dual-channel lid detection, real-time door monitoring, laser interlock systems, and a double-layer safety window (tempered glass + fiber shield). Physical shutters and signal isolation protect both laser sources from accidental activation.
Material | Cut | Engrave |
---|---|---|
Wood | √ | √ |
Cherry Wood | √ | √ |
Birch Ply | √ | √ |
MDF | √ | √ |
Acrylic | √ | √ |
Glass | × | √ |
Anodized Aluminum | × | √ |
POM | √ | √ |
Rubber | √ | √ |
Cotton | √ | √ |
Denim | √ | √ |
POM | √ | √ |
ABS | √ | √ |
PET | √ | √ |
PBT | √ | √ |
Alumia | √ | √ |
Aluminum sheet | √ | √ |
Brass | √ | √ |
Sterling Sliver | √ | √ |
Titanium Plate | √ | √ |
Material | Cut | Engrave |
---|---|---|
Carbon Steel | √ | √ |
Copper | √ | √ |
Galvanized Ironsheet | √ | √ |
Leather | √ | √ |
Marble | × | √ |
Ceramic | × | √ |
Cardboard | √ | √ |
Paper | √ | √ |
EVA FOAM | √ | √ |
Cork | √ | √ |
Bamboo | √ | √ |
Denim | √ | √ |
Coated Metals | × | √ |
Magnesium Plate | √ | √ |
Nickel Plate | √ | √ |
Rock | √ | √ |
Scratch Paper Gold/Silver | √ | √ |
Slate | √ | √ |

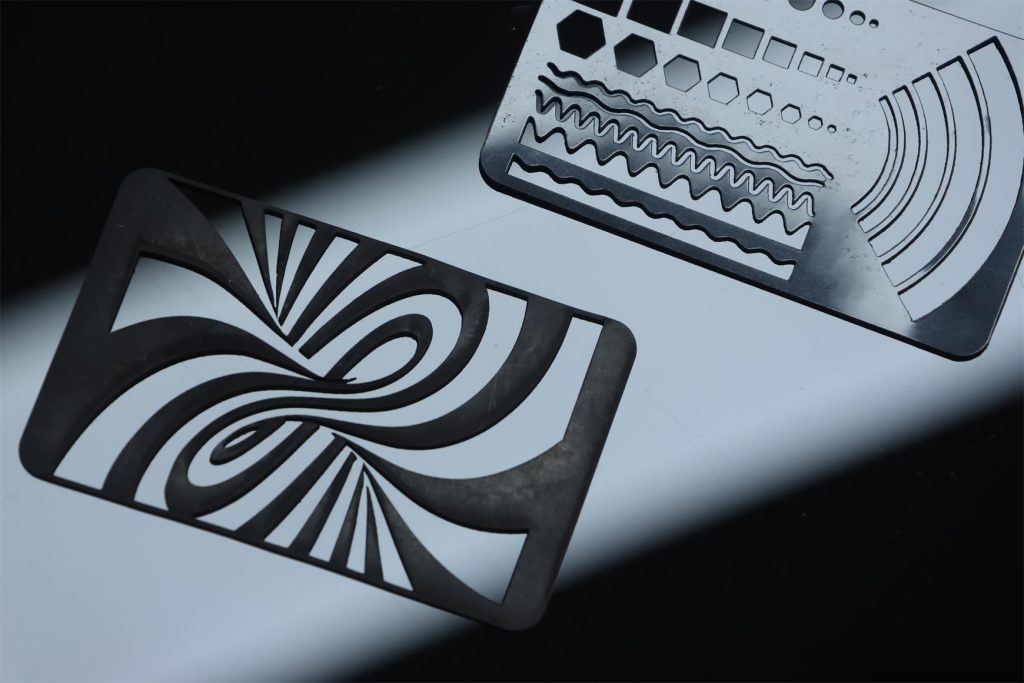

Stainless Steel | √ | √ |
Steel | √ | √ |
