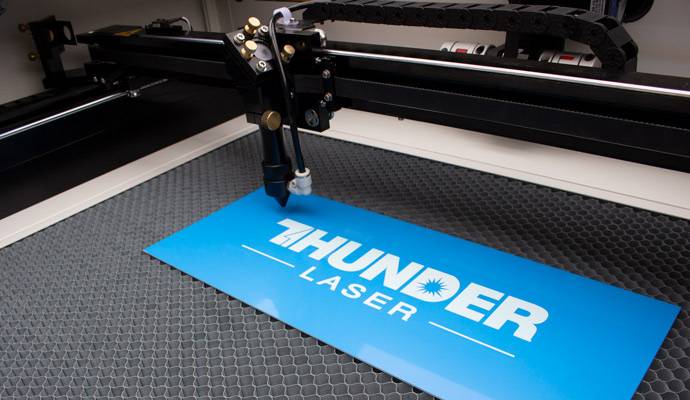

Our desktop Mini 60 40 watt laser engraver is a suitable tool for beginner makers to work on hobbies or start a small business.
Cutting, marking and engraving is just the beginning.
600mm/s speed is great for engraving photos and cuts vector images.
Reduces underside reflections.
Controls air volume.
Your CO2 laser is protected from breakage with tempered glass.
Our heat detector accurately detects abnormally high temperatures for your safety.
Shows the work state and alerts you when the job is done.
| Laser System | Mini 60 | ||
|---|---|---|---|
| Engraving / Working Area | 23.6″ x 15.7″ x .4″ | ||
| Max Part Size | Pass through closed: 27.6″ x 20.9″ x .4″ Pass through open: 27.6″ x ∞” x .4″ | ||
| Laser Wattage | 40w | ||
| Intelligent Memory Capacity | Multiple File Storage up to 128MB | ||
| Laser Source | Sealed CO2 Glass Tube, stringintly tested to pass Quality Control. Average lifespan is 2000-4000 working hours. Replacement cost $250 (40w) | ||
| Electrical Requirements | Standard 110v AC 60Hz Single Phase, dedicated 15A circuit | ||
| Air Assist | Air pump 5-7psi included | ||
| Machine Size | 42.1″ x 31.1″ x 12.3″ | ||
| Software | The machine support RD works and Lightburn software. | ||
| Camera System | Optional ThunderCam allows you to see materials on the laser bed via the software for easy positioning of engravings on strange-shaped objects. | ||
| Operating Modes | Optimized raster, vector, or combined modes | ||
| Easy Adjustable Home | When engraving items that are not easily placed at the top corner of the laser, you can set a new home position by hand with a new origin | ||
| Motion Control System | Standard stepper motors with engraving speeds up to 600mm/s (23″/second) | ||
| Resolution | Up to 500dpi with included 2″ head or 800dpi with HR head | ||
| Safety | Open cover protection, no-water protection, heat alarm system | ||
| Auto Focus | Infrared Auto-Focus system to easily bring material into focus | ||
| Belts | High-quality fiberglass reinforced neoprene belts | ||
| Water Chiller | CW3000 | ||
| Laser Heads | “2” Head/ Lens included, optional HR head | ||
| TL-Timer (Smart Board) | Relay switch that controls exhaust and air assist so they stop running when laser is not working | ||
| Warning Light | Visible red / green light on machine so you know when job is finished | ||
| Support | Free lifetime support | ||
Closely monitor your laser and position on your machine's workspace.
Our high pressure and low noise air compressor offered by Thunder Laser CO2 laser engraver machine includes two parts: the high pressure and low noise air compressor and the water separator.
Thunderlaser exclusive lightburn DSP license key
